Product Overview

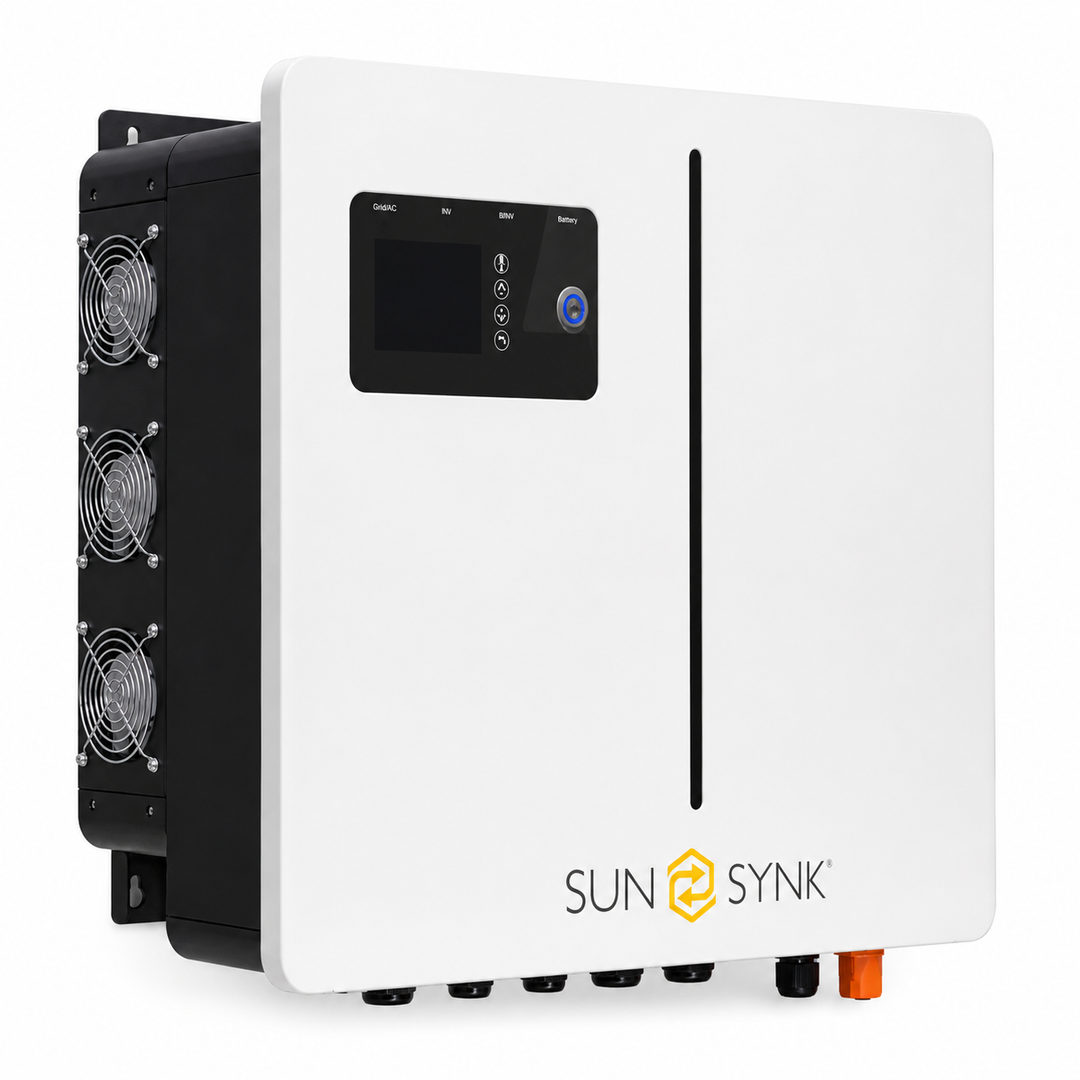

The Sunsynk SS-12kW-LLKS-HYB-3P-IP65-04 is a 12kW three-phase hybrid inverter designed for demanding residential, commercial and agricultural solar power systems requiring high-capacity backup power, battery integration and advanced energy management. Featuring dual MPPT tracking, support for LiFePO4 and lead-acid battery systems, and an IP65-rated enclosure, this inverter is suitable for larger hybrid solar installations in South African conditions.
Key Features
- 12kW three-phase hybrid inverter suitable for solar, backup power and energy storage applications.
- Compatible with both LiFePO4 and lead-acid battery systems.
- Dual MPPT trackers help optimise solar production across multiple PV strings.
- IP65-rated enclosure designed for indoor or protected outdoor installation environments.
- Supports up to 18000W PV input capacity for larger solar array installations.
- Fast 10ms transfer time assists with seamless backup switching during grid interruptions.
- Up to 97.6% maximum efficiency for efficient power conversion.
- Integrated protection features including overload, short circuit and over-temperature protection.
Applications
- Large residential three-phase solar power systems.
- Commercial and industrial backup power installations.
- Farm and agricultural solar energy systems.
- Hybrid solar systems designed to improve energy independence and reduce grid reliance.
Why Choose This Product?
The Sunsynk 12kW LP Three-Phase Hybrid Inverter offers high-capacity solar and backup performance for demanding hybrid energy applications. Its dual MPPT configuration, flexible battery compatibility and substantial PV input capability make it suitable for larger residential, commercial and agricultural installations requiring reliable three-phase energy management.
Important Notes
- Compatible with 40V to 60V battery systems.
- Battery communication and compatibility should be confirmed before installation.
- Installation should be completed by a qualified electrician or solar installer.
- Ensure PV array sizing complies with the inverter voltage and current limits.
- Specifications and approvals may change without prior notice. Confirm final details with the latest supplier datasheet before publishing or installation.
Technical Specifications
| Specification |
Detail |
| Brand |
Sunsynk |
| Model |
SS-12kW-LLKS-HYB-3P-IP65-04 |
| Product Type |
Three-Phase Hybrid Inverter |
| Rated Output Power |
12000W |
| Max. Apparent Output Power |
12000VA |
| Peak Output Apparent Power |
24000VA |
| Supported Battery Type |
LiFePO4 or Lead-Acid |
| Battery Input Voltage Range |
40V – 60V |
| Max. Charge Voltage |
60V (Configurable) |
| Max. Charge Current |
220A (Configurable) |
| Max. Discharge Current |
260A (Configurable) |
| Recommended Battery Capacity |
100Ah – 2000Ah |
| Max. PV Input Power |
18000W |
| Max. DC Input Voltage |
800V |
| MPPT Voltage Range |
200V – 650V |
| Start-Up Voltage |
180V |
| Max. PV Input Current |
28A x 2 = 56A |
| MPPT Channels |
2 |
| Nominal Output Voltage |
3L/N/PE 220V/380V or 3L/N/PE 230V/400V |
| Nominal Output Frequency |
50/60Hz (+/-0.2%) Configurable |
| Max. Bypass Current |
63A |
| Transfer Time |
10ms |
| Max. Efficiency |
97.6% |
| Battery to Load Efficiency |
94.0% |
| MPPT Efficiency |
99.9% |
| Protection Rating |
IP65 |
| Operating Temperature Range |
-20°C to +50°C (>35°C Derating) |
| Dimensions |
620 x 585 x 225mm |
| Weight |
42kg |
