Product Overview

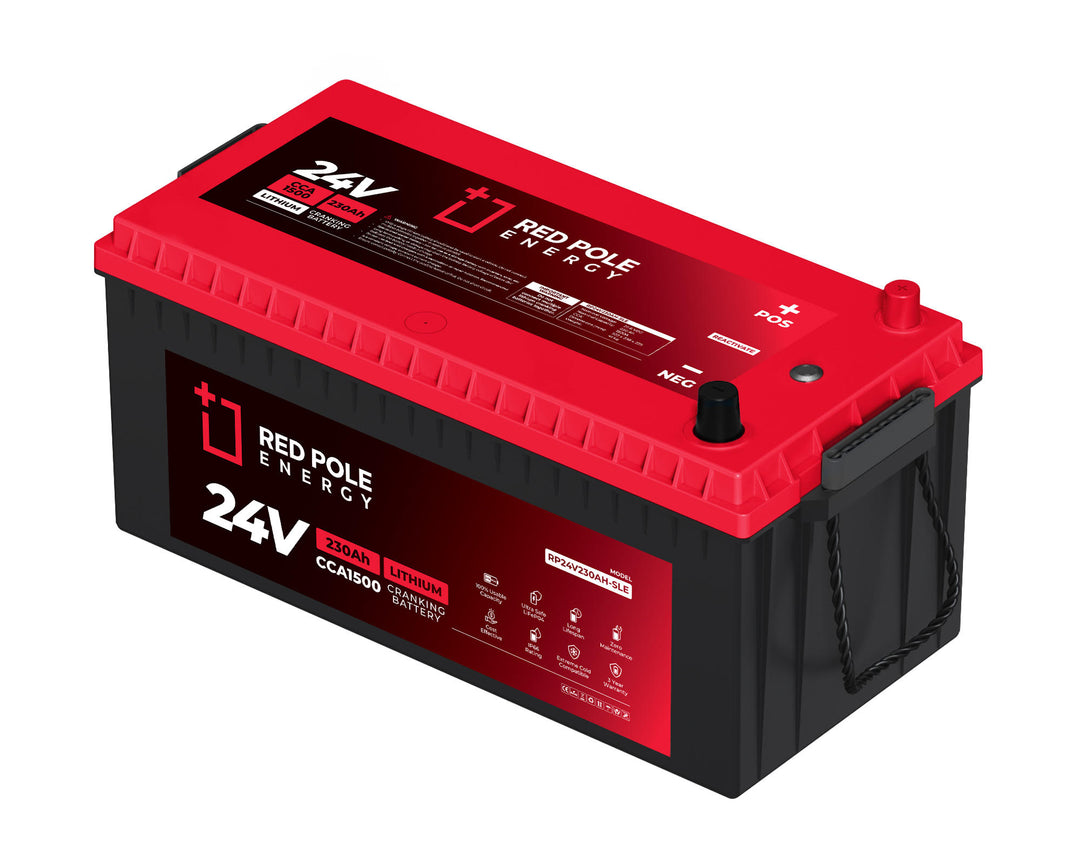

The Red Pole Energy 25.6V 230Ah LiFePO4 starter battery is designed for demanding 24V heavy-duty starting applications requiring up to 1500 CCA. It uses automotive-grade high-discharge LiFePO4 cells, an integrated battery management system and a high-temperature battery casing for long-haul trucks, large diesel vehicles and other heavy commercial applications.
Key Features
- 1500 CCA starting capability for suitable 24V heavy-duty vehicles.
- Automotive-grade high-discharge LiFePO4 cells selected for high transient current, voltage and temperature tolerance.
- Integrated automotive-grade battery management system helps monitor and protect the battery cells.
- IP66-rated enclosure is sealed against water and dust.
- PC/ABS high-temperature casing with V0 fire rating for demanding automotive environments.
- Low self-discharge of less than 3% per month.
- 24V starter range includes an emergency reserve-capacity function for reactivation after the usable capacity has been depleted.
Applications
- Long-haul trucks.
- Large diesel vehicles and heavy trucks.
- Replacement of compatible lead-acid starter batteries, including models 695 and 969, subject to physical fitment, polarity and starting-current requirements.
Why Choose This Product?
This model is designed for high-demand commercial starting duties where high cranking output, reduced maintenance and the service-life benefits of LiFePO4 technology are important. Its integrated BMS, IP66 enclosure and automotive-grade cell construction suit demanding heavy-vehicle environments.
Important Notes
- Left pole positive. Confirm terminal orientation, physical dimensions and vehicle starting requirements before ordering.
- Use the Red Pole battery selection tool to confirm a suitable battery for your vehicle.
- Supplier states an expected lifespan of approximately 6 to 10 years, depending on operating conditions and use.
- Includes 1 x 24V 230Ah starter battery.
- Warranty: 4 years.
Technical Specifications
| Specification |
Detail |
| Brand |
Red Pole Energy |
| Model |
25.6V 230AH-SLE |
| Product Type |
LiFePO4 starter battery |
| Nominal Voltage |
25.6V DC |
| Nominal Capacity |
230Ah |
| CCA |
1500A |
| Polarity |
Left pole positive |
| Dimensions |
522 x 238 x 225 mm |
| Weight |
41 kg |
| IP Rating |
IP66 |
| Max Continuous Discharge Current |
230A |
| Max Continuous Charge Current |
230A |
| Cell Type |
LiFePO4 | Cylindrical LFP |
| Operating Voltage Range |
20-29.2V |
| Operating Temperature Range |
Charge: 0°C to 55°C | Discharge: -20°C to 70°C |
| Terminals |
Standard auto post terminal |
| Warranty |
4 years |
