Product Overview

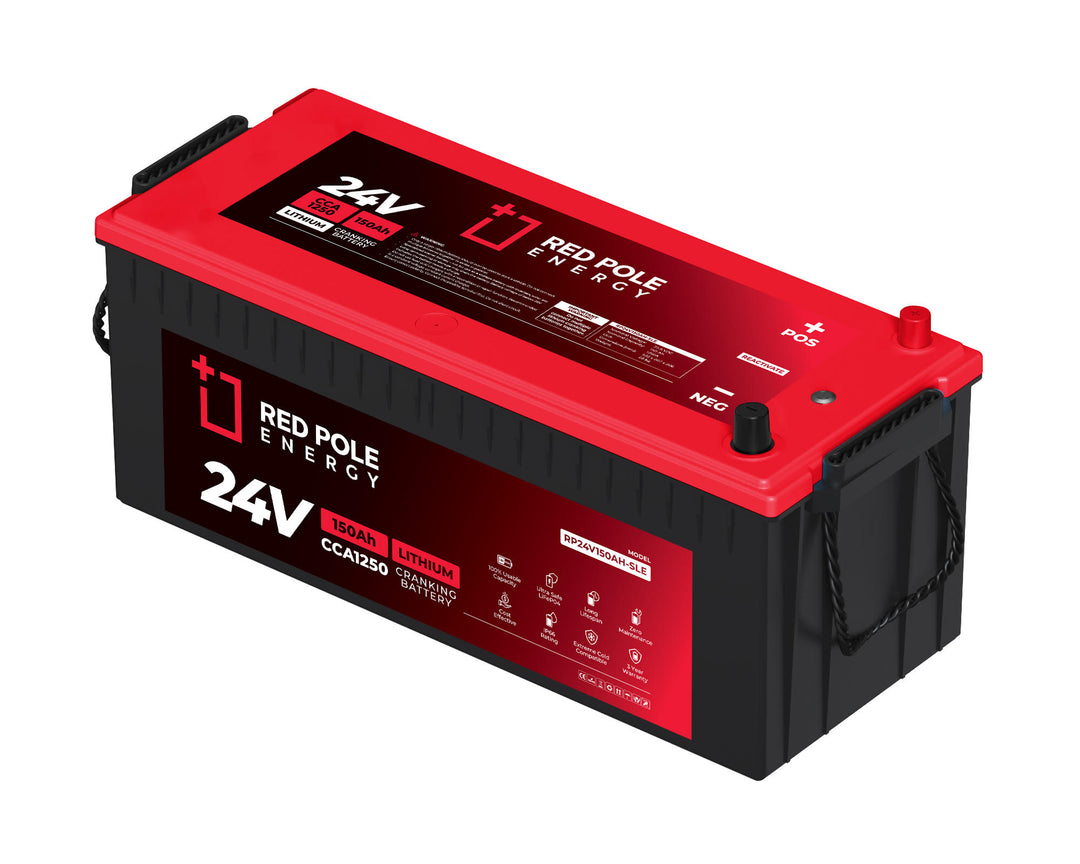

The Red Pole Energy 25.6V 150Ah LiFePO4 starter battery is designed for demanding 24V commercial and heavy-duty starting applications requiring up to 1250 CCA. It uses automotive-grade high-discharge LiFePO4 cells, an integrated battery management system and a high-temperature battery casing for use in trucks, long-haul vehicles and heavy diesel applications.
Key Features
- 1250 CCA starting capability for suitable 24V commercial vehicles and heavy diesel applications.
- Automotive-grade high-discharge LiFePO4 cells selected for high transient current, voltage and temperature tolerance.
- Integrated automotive-grade battery management system helps monitor and protect the battery cells.
- IP66-rated enclosure is sealed against water and dust.
- PC/ABS high-temperature casing with V0 fire rating for demanding automotive environments.
- Low self-discharge of less than 3% per month.
- 24V starter range includes an emergency reserve-capacity function for reactivation after the usable capacity has been depleted.
Applications
- Heavy trucks and long-haul trucks.
- Large diesel vehicles and other 24V commercial vehicles requiring less than 1250A CCA.
- Replacement of compatible lead-acid starter batteries, including models 689, 690, 695 and 696, subject to physical fitment, polarity and starting-current requirements.
Why Choose This Product?
This battery is designed for heavy-duty 24V starting duties where high cranking performance, reduced maintenance and the service-life benefits of LiFePO4 technology are required. Its integrated BMS, IP66 enclosure and automotive-grade cell construction suit demanding commercial vehicle environments.
Important Notes
- Left pole positive. Confirm terminal orientation, physical dimensions and vehicle starting requirements before ordering.
- Use the Red Pole battery selection tool to confirm a suitable battery for your vehicle.
- Supplier states an expected lifespan of approximately 6 to 10 years, depending on operating conditions and use.
- Includes 1 x 24V 150Ah cranking battery.
- Warranty: 4 years.
Technical Specifications
| Specification |
Detail |
| Brand |
Red Pole Energy |
| Model |
25.6V 150AH-SLE |
| Product Type |
LiFePO4 starter battery |
| Nominal Voltage |
25.6V DC |
| Nominal Capacity |
150Ah |
| CCA |
1250A |
| Polarity |
Left pole positive |
| Dimensions |
532 x 207 x 206 mm |
| Weight |
28 kg |
| IP Rating |
IP66 |
| Max Continuous Discharge Current |
150A |
| Max Continuous Charge Current |
150A |
| Cell Type |
LiFePO4 | Cylindrical LFP |
| Operating Voltage Range |
20-29.2V |
| Operating Temperature Range |
Charge: 0°C to 55°C | Discharge: -20°C to 70°C |
| Terminals |
Standard auto post terminal |
| Warranty |
4 years |
