Product Overview

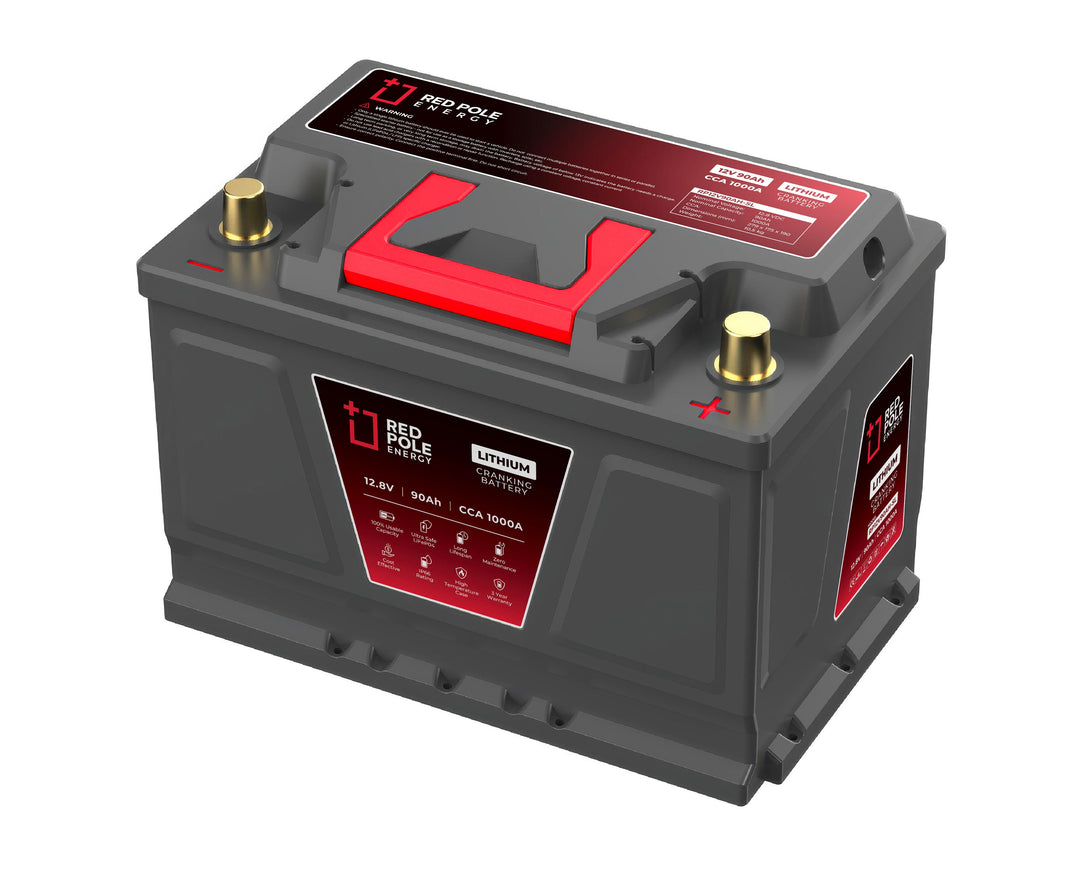

The Red Pole Energy RP12V90Ah-SL is a 12.8V 90Ah LiFePO4 starter battery for large SUVs, bakkies and vans requiring between 750A and 1000A cold cranking amps (CCA). Designed as a replacement option for compatible 12V lead-acid, AGM and EFB starter batteries, it combines high-discharge lithium cells with an automotive-grade battery management system (BMS).
Key Features
- 1000A maximum CCA for suitable high-demand 12V starting applications.
- Automotive-grade, high-discharge LiFePO4 cylindrical cells selected for transient-current, voltage and temperature tolerance.
- Automotive-grade BMS helps protect against over-charging, over-discharging, short circuits and improper charge voltages.
- IP66-rated enclosure helps protect the battery against dust and water ingress.
- PC/ABS casing with a VO rating is designed for impact resistance and high-temperature conditions.
- Maintenance-free design with supplier-stated self-discharge of less than 3% per month.
Applications
- Large SUVs, bakkies and vans requiring a 12V starter battery with 750A to 1000A CCA.
- Replacement for compatible 650S, 652, 654, 658 and 668 lead-acid battery formats.
- 12V vehicle starting applications where the required CCA, physical dimensions and terminal layout match.
Why Choose This Product?
This lithium starter battery is a practical option for suitable vehicles that need strong cranking performance in a compact, maintenance-free format. Its high-discharge LiFePO4 cells, BMS and IP66-rated enclosure support the demands placed on an automotive starter battery, while the 8.6kg weight may offer a lighter alternative to a comparable conventional starter battery.
Important Notes
- Left pole positive: when the terminals are furthest from you, the positive terminal is on the left.
- Confirm the vehicle's CCA requirement, battery dimensions, terminal orientation and terminal type before ordering.
- Use the Red Pole battery selection tool to confirm a suitable battery for your vehicle.
- Use within the specified 10V to 14.6V operating voltage range. Charging is specified from 0°C to 55°C; discharging is specified from -20°C to 70°C.
- Warranty: 3 years.
Technical Specifications
| Specification |
Detail |
| Brand |
Red Pole Energy |
| Model |
RP12V90Ah-SL |
| Product Type |
Lithium starter battery |
| Nominal Voltage |
12.8VDC |
| Nominal Capacity |
90Ah |
| Maximum Cold Cranking Amps |
1000A |
| Maximum Continuous Discharge Current |
90A (1C) |
| Maximum Continuous Charge Current |
90A (1C) |
| Discharge Current |
1000A for <3 seconds; 500A for <10 seconds; 400A for 30 seconds |
| Battery Chemistry |
LiFePO4, cylindrical LFP |
| Operating Voltage Range |
10V to 14.6V |
| Operating Temperature Range |
Charge: 0°C to 55°C; discharge: -20°C to 70°C |
| IP Rating |
IP66 |
| Terminals |
Automotive post terminal |
| Polarity |
Left pole positive |
| Dimensions |
279 x 175 x 190mm |
| Weight |
8.6kg |
| Self-Discharge |
Less than 3% per month |
| Supplier-Stated Service Life |
6 to 10 years |
| Warranty |
3 years |
| What's in the Box |
1 x 12V 90Ah 1000CCA lithium starter battery; 1 x user manual |
