Product Overview

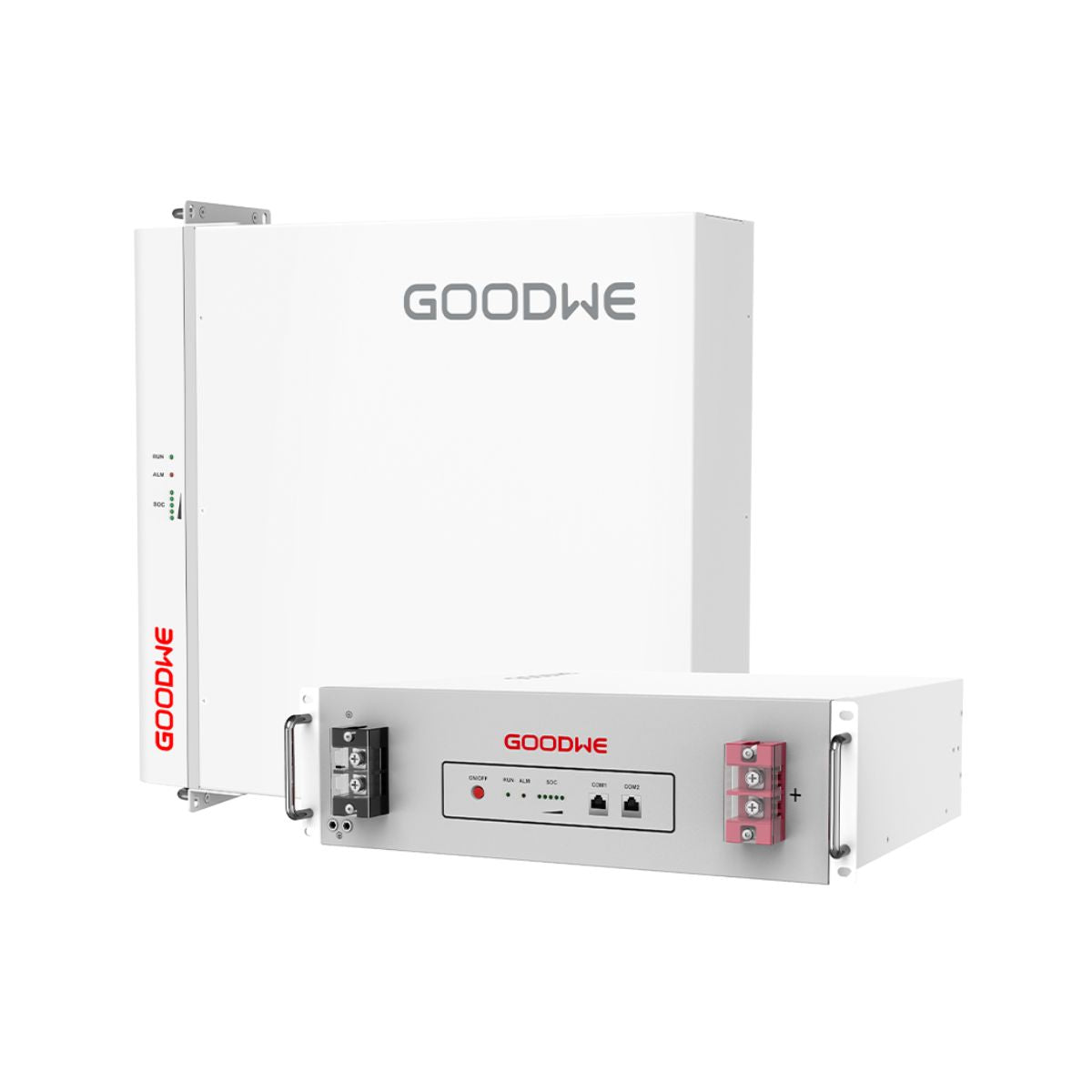

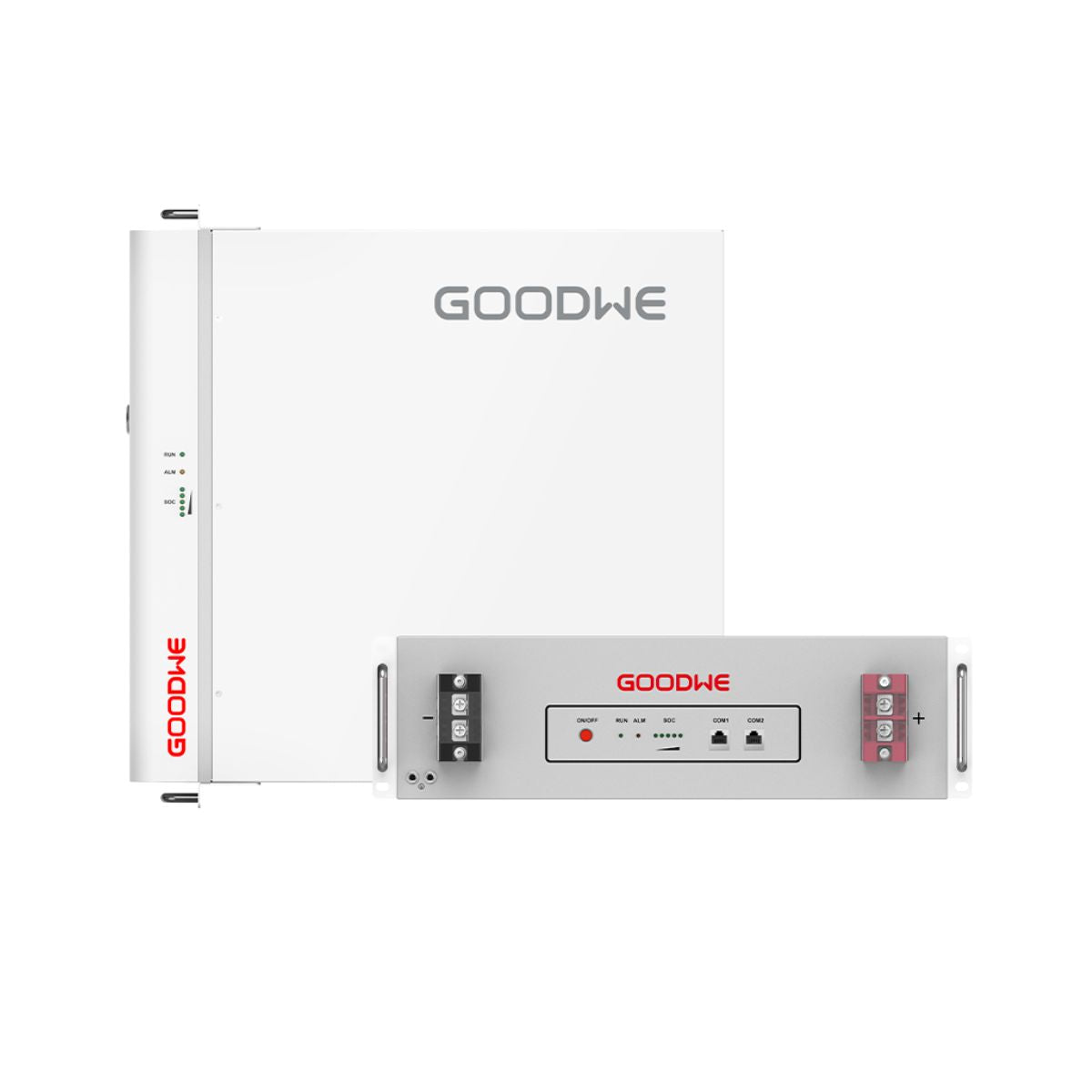

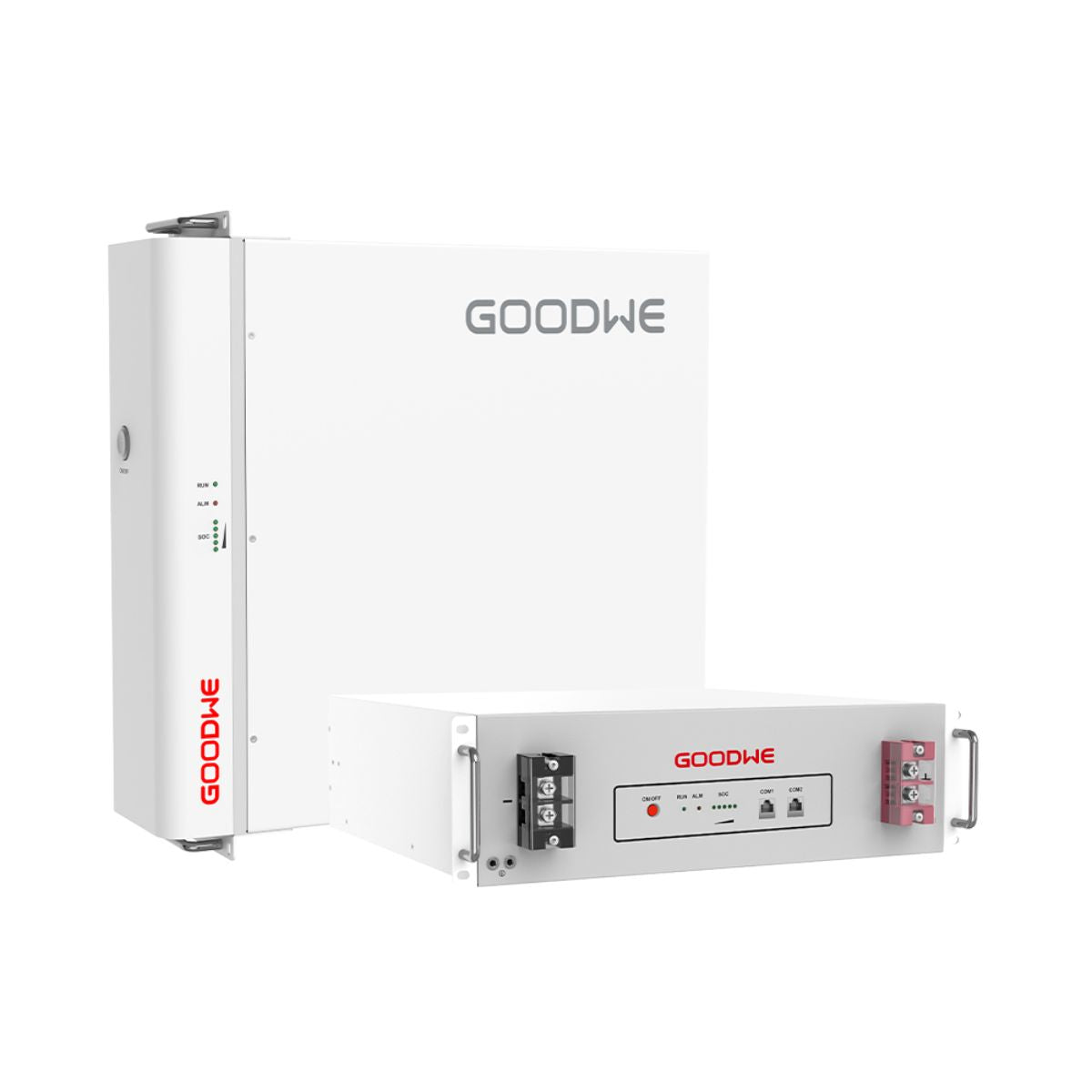

The GoodWe LX A5.0-30 is a 5kWh low-voltage LFP battery module in the Lynx A G3 Series, designed for residential energy storage systems. It supports flexible installation methods including wall-mounted, floor-mounted and 19-inch rack applications, making it a practical option for homes that need adaptable battery expansion on a low-voltage platform.
Key Features
- 5.12kWh nominal battery energy with 5kWh usable energy for residential storage and backup support.
- LFP (LiFePO4) cell technology supports safety, cycle stability and long-term residential use.
- Supports wall-mounted, floor-mounted and 19-inch standard rack installation methods for flexible deployment.
- Up to 150A max continuous discharge current supports stronger low-voltage backup and storage performance.
- Scalable design supports up to 30 units in parallel for systems up to 150kWh.
- CAN communication supports integration with compatible GoodWe residential storage inverters.
Applications
- Residential solar self-consumption systems.
- On-grid, on-grid plus backup and off-grid storage applications.
- Homes needing modular low-voltage battery expansion.
- Installations requiring wall-mounted, floor-mounted or rack-mounted battery options.
Why Choose This Product?
This battery is a practical choice for homeowners and installers who want a modular 5kWh building block with flexible mounting options and strong low-voltage performance. Its scalable design and multiple installation methods make it easier to tailor the storage system to the available space and required capacity.
Important Notes
- The GoodWe documentation supports wall-mounted installation using the hanger or bracket arrangement shown in the installation manual.
- If this listing is being sold specifically as a battery-and-bracket bundle, the exact included hardware should be confirmed before publishing.
- Installation should be completed by a qualified installer using the latest GoodWe documentation.
- Maximum charge, discharge current and power can vary with inverter model, temperature and state of charge.
Technical Specifications
| Specification |
Detail |
| Brand |
GoodWe |
| Model |
LX A5.0-30 |
| Product Type |
Low-voltage battery module |
| Series |
Lynx A G3 Series |
| Nominal Battery Energy |
5.12kWh |
| Usable Energy |
5kWh |
| Cell Type |
LFP (LiFePO4) |
| Operating Voltage Range |
43.20 - 58.24V |
| Nominal Charge Current |
60A |
| Max. Continuous Charge Current |
90A |
| Nominal Discharge Current |
100A |
| Max. Continuous Discharge Current |
150A |
| Max. Pulse Discharge Current |
<200A (30s) |
| Max. Continuous Discharging Power |
7200W |
| Communication |
CAN |
| Ingress Protection Rating |
IP20 |
| Applications |
On Grid / On Grid + Backup / Off Grid |
| Scalability |
Max. 30 in parallel (150kWh) |
| Mounting Method |
19-inch standard rack, floor-mounted, wall-mounted |
| Dimensions |
442 × 133 × 520mm (excluding hanger); 483 × 133 × 559mm (including hanger) |
| Weight |
44kg |
| Round-trip Efficiency |
≥96% |
