Product Overview

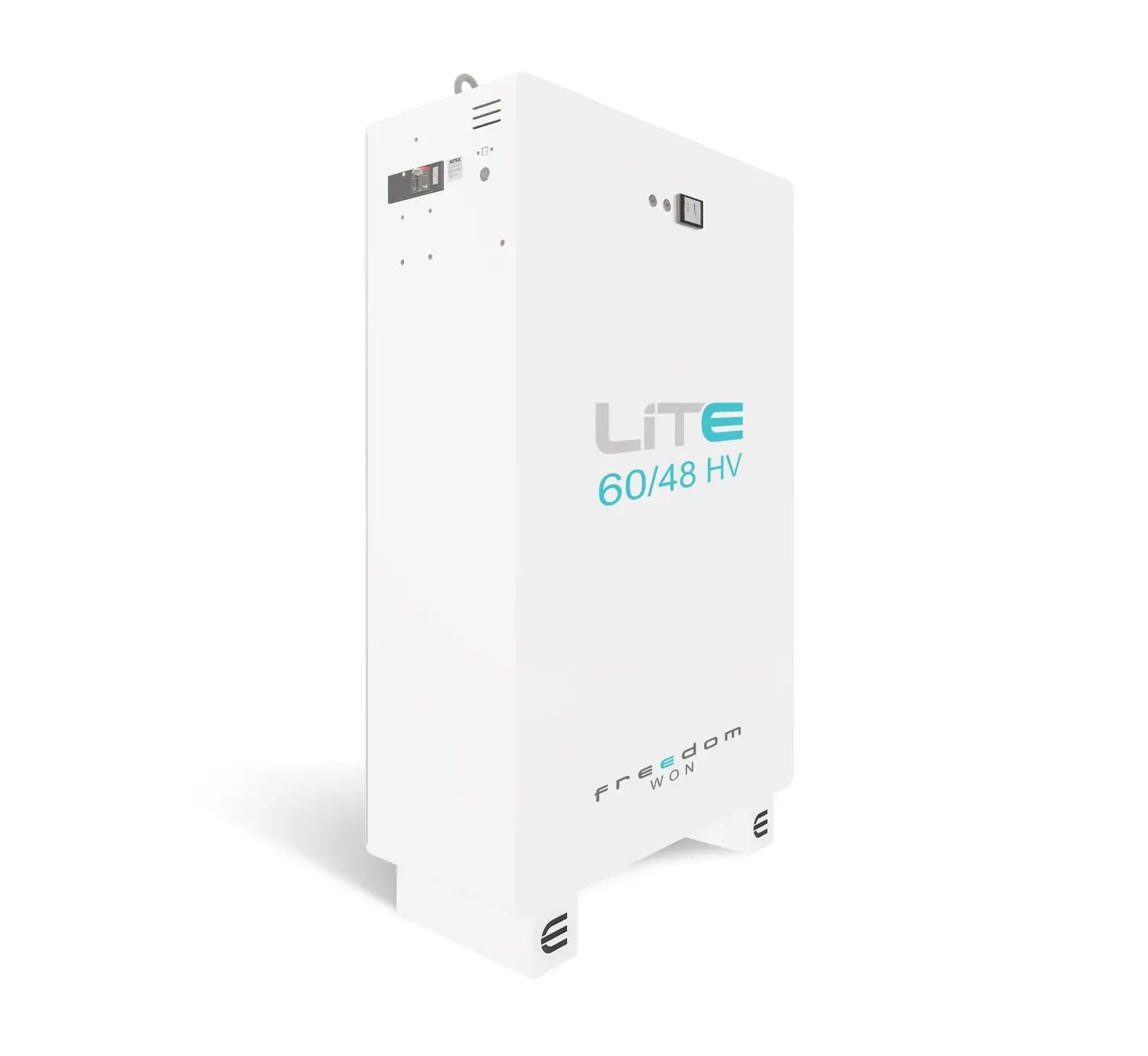

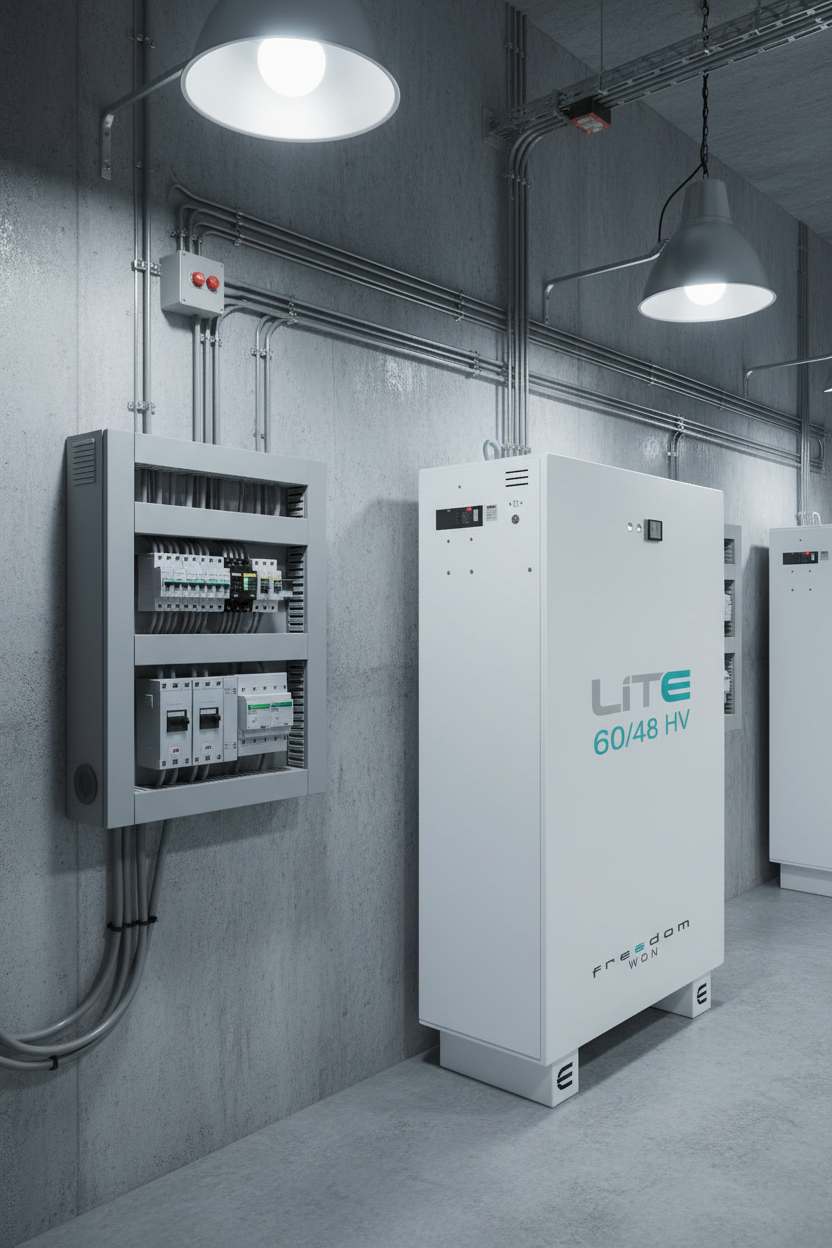

The Freedom Won LiTE Business 60/48 HV is a high-voltage battery energy storage solution designed for larger backup and energy storage applications where substantial stored capacity and strong discharge performance are required. It offers 60kWh total energy capacity, with 48kWh available at 80% depth of discharge and 54kWh available at 90% depth of discharge.
Key Features
- 60kWh total battery capacity supports demanding commercial and larger-scale energy storage applications.
- 48kWh usable energy at 80% depth of discharge helps balance practical daily use with extended service life.
- High-voltage design with a 614V nominal voltage is suited to various high DC voltage inverter systems, subject to manufacturer pairing confirmation.
- Continuous discharge capability of 60kW with peak discharge capability of 92kW supports high-load operation where required.
- Integrated protection includes a shunt trip circuit breaker, overcurrent protection, cell under- and over-voltage protection, temperature protection, weak cell detection and minimum state of charge control.
- Built-in CAN Bus diagnostics and communication support system monitoring and troubleshooting.
- State of charge display, error light, reset button and USB programming interface provide clear on-unit status visibility.
- White-painted aluminium enclosure is rated to IP20 for indoor or fully protected under-cover installations.
Applications
- Commercial and business backup power systems.
- High-voltage battery storage for solar and hybrid energy systems.
- Larger residential or mixed-use installations with substantial storage requirements.
- Energy storage projects where strong continuous and peak discharge performance is needed.
Why Choose This Product?
The LiTE Business 60/48 HV is suited to buyers looking for a high-capacity Freedom Won battery with strong discharge capability, integrated protection and practical communication features for monitored energy storage systems. It is a solid option for professionally designed high-voltage installations where the inverter pairing and system configuration will be confirmed before deployment.
Important Notes
- Inverter compatibility is not specified by model in the supplied sheet. Freedom Won states that the voltage is suitable for various high DC voltage inverters, and pairing support should be confirmed before publishing or installation.
- This unit is rated IP20 and is intended for indoor or fully protected under-cover environments.
- The standard warranty is stated as 10 years or 6000 cycles at 80% depth of discharge, 0.5C maximum discharge, 0.25C maximum charge and a maximum temperature of 25°C.
- Maximum discharge current is limited to 5 minutes in every 10 minutes, with 1.5 times maximum overload for 5 seconds.
- Installation and commissioning should be handled by a qualified installer familiar with high-voltage battery systems.
- The supplied DC fly leads for the 60/48 HV are noted as 4m long.
Technical Specifications
| Specification |
Detail |
| Brand |
Freedom Won |
| Model |
LiTE Business 60/48 HV |
| Product Type |
High-voltage battery energy storage system |
| Total Energy Capacity |
60kWh |
| Usable Energy at 80% DoD |
48kWh |
| Usable Energy at 90% DoD |
54kWh |
| Maximum / Continuous Discharge Current |
150A / 100A |
| Maximum / Continuous Discharge Power |
92kW / 60kW |
| Maximum / Continuous Charge Current |
100A |
| Nominal Voltage |
614V |
| Maximum / Minimum Operating Voltage |
682V / 547V |
| Short Circuit Current |
5kA |
| Battery Dimensions |
1350 x 1040 x 290mm |
| Crated Dimensions |
1460 x 1175 x 480mm |
| Battery Weight |
485kg |
| Crated Weight |
528kg |
| DC Connection |
1 x 25mm² Permopower fly leads per electrode |
| Fly Lead Length |
4m |
| Enclosure |
White-painted aluminium enclosure |
| IP Rating |
IP20 |
| Installation Environment |
Indoor or fully protected under-cover environments |
| Control Interface |
CAN Bus for diagnostics and troubleshooting; RJ45 strictly for BMS and inverter communication |
| Human Interface |
State of charge display, error light, error reset button, USB plug for programming |
| Protection |
Shunt trip circuit breaker sized to suit max current, with BMS-triggered protection for critical fault conditions including overcurrent, cell under- and over-voltage, temperature, weak cell detection and minimum SoC control |
| Warranty |
10 years or 6000 cycles at 80% DoD, subject to stated operating conditions |
| Expected Service Life |
13 to 15 years at 70% DoD; 15 to 20 years at 50% DoD |
