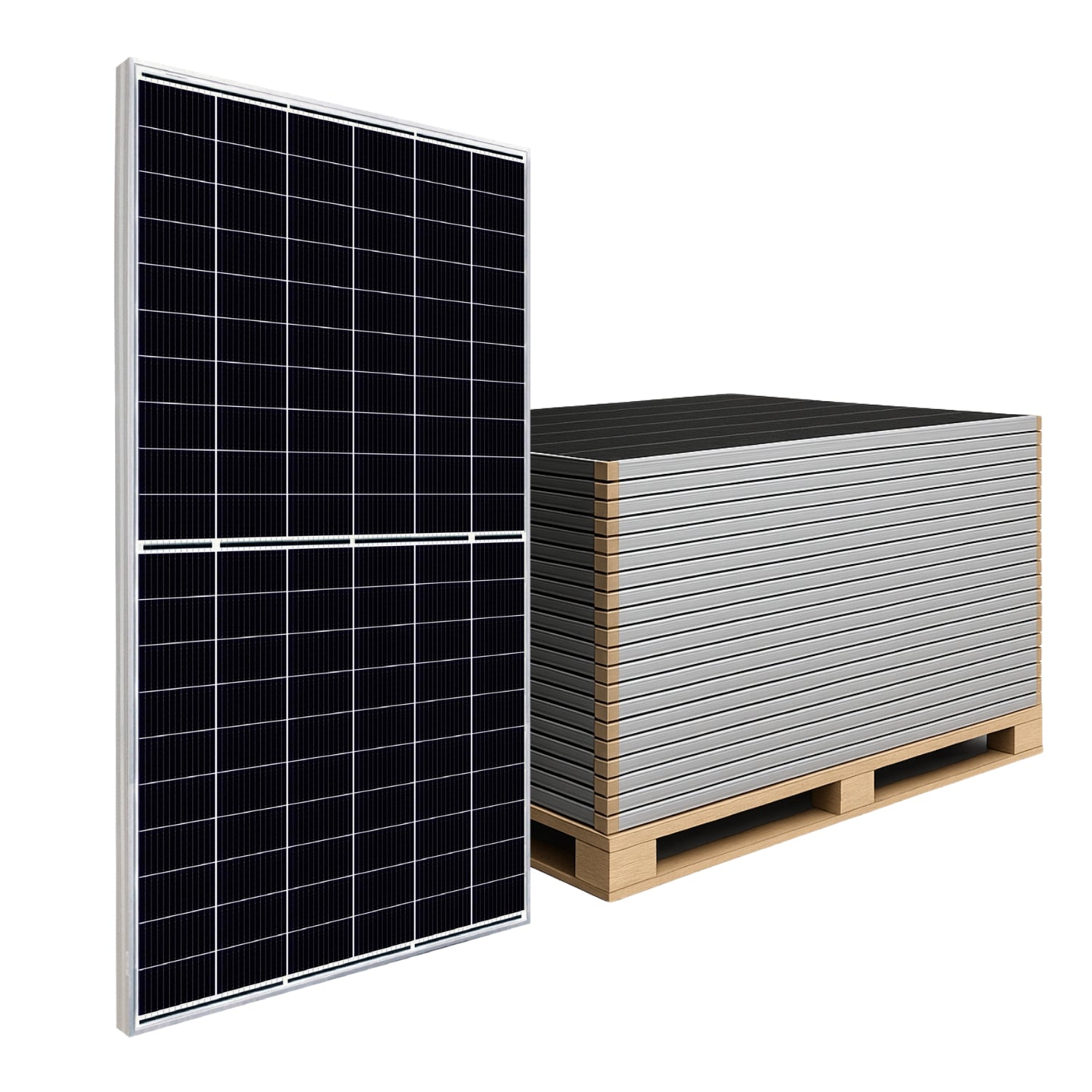

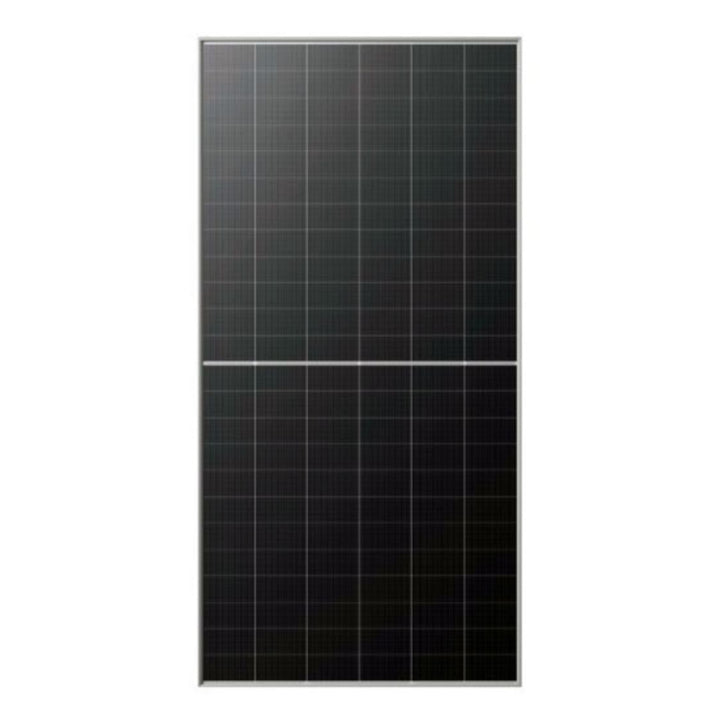

The 590W Solar Panel is a high-efficiency N-type bifacial dual-glass module designed for commercial and utility-scale solar installations. Utilizing advanced HOT 3.0 technology, this module delivers exceptional energy yield, improved reliability, and superior long-term performance.
Its bifacial design allows energy generation from both sides of the panel, increasing total output in reflective environments. The dual-glass construction enhances durability, reduces degradation, and provides excellent resistance to harsh environmental conditions.
| Electrical Characteristics | |
|---|---|
| Rated Maximum Power (Pmax) | 590 W |
| Module Efficiency | ~22.8% |
| Maximum Power Voltage (Vmp) | ~44.17 V |
| Maximum Power Current (Imp) | ~13.36 A |
| Open Circuit Voltage (Voc) | ~52.90 V |
| Short Circuit Current (Isc) | ~14.07 A |
| Maximum System Voltage | 1500 V DC |
| Power Tolerance | 0 ~ +3% |
| Temperature Characteristics | |
|---|---|
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.045% / °C |
| Operating Temperature Range | -40°C to +85°C |
| Nominal Operating Cell Temperature (NOCT) | ~45°C ± 2°C |
| Mechanical Specifications | |
|---|---|
| Cell Type | N-type Monocrystalline |
| Cell Configuration | 144 Half-Cut Cells |
| Module Type | Bifacial, Dual Glass |
| Dimensions | ~2278 × 1134 × 30 mm |
| Weight | ~32 kg |
| Front Load Capacity | 5400 Pa |
| Rear Load Capacity | 2400 Pa |
| Connector Type | MC4 Compatible |
| Frame | Anodized Aluminum Alloy |
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
