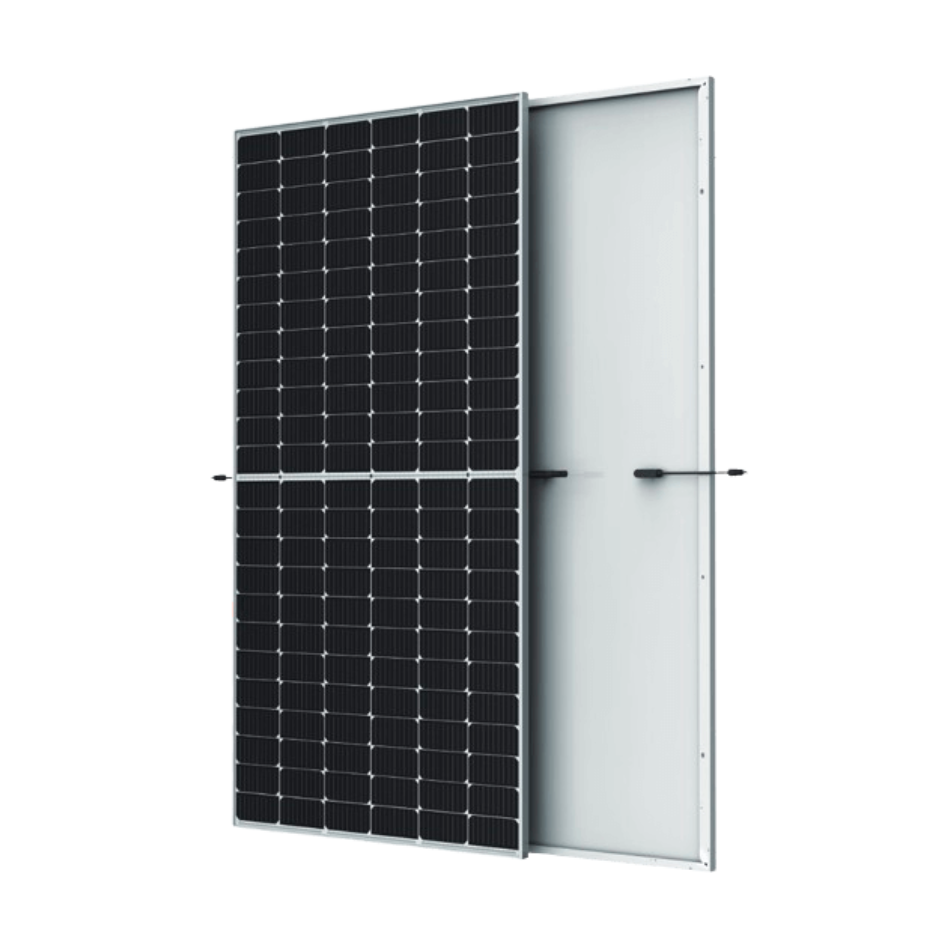

The Trina Solar 550W TallMax Monocrystalline solar panel is designed to deliver high efficiency and reliability for large-scale commercial and utility projects. Featuring multi-busbar (MBB) technology, high-density cell interconnects, and robust environmental resistance, this module maximises energy harvest while reducing long-term operational costs.

With module efficiencies of up to 21.3%, the 550W TallMax strikes an ideal balance of power, performance, and durability, it gives solar installers lower balance of system (BOS) costs, faster project paybacks, and greater confidence in long-term output. End-users benefit from dependable clean energy generation backed by Trina Solar’s strong warranty guarantees.

Product Benefits

• High power output of 550W for efficient energy production

• Trina Solar 550W has advanced multi-busbar technology, which reduces resistance and improves current collection

• Optimised design for excellent performance under low light and shading conditions

• Durable construction withstands harsh environments, including salt, ammonia, sand, high temperature, and humidity

• Low temperature coefficient ensures sustained performance in hot climates

• Reliable backsheet technology provides PID resistance and long-term durability

• Multiple certifications assure quality and reliability

• Trina Solar's comprehensive warranty offers peace of mind for installers and end users

Key Specifications

ELECTRICAL DATA (STC )

• Peak Power Watts-P MAX: 550W
• Maximum Power Voltage -VMPP: 41.6V
• Maximum Power Current-IMPP: 13.21A
• Open Circuit Voltage - VOC: 49.8V
• Short Circuit Current - ISC (A): 14.02A
• Maximum Efficiency: 21.3%
• Power Tolerance-PMAX (W): 0 ~ +5

ELECTRICAL DATA (NOCT )

• Maximum Power Voltage -VMPP: 38.7V
• Maximum Power Current-IMPP: 10.72A
• Open Circuit Voltage - VOC: 46.9V
• Short Circuit Current - ISC (A): 11.30A

• Cell Technology: Monocrystalline
• Operating Temperature Range: -40°C to +85°C
• System Voltage: 1500V DC (IEC)
• Connector Type: MC4 EVO2 / TS4 Plus/ TS4
• Max Series Fuse Rating: 25A
• Module Dimensions: 2278 × 1134 × 30 mm
• Weight: 27.5 kg
