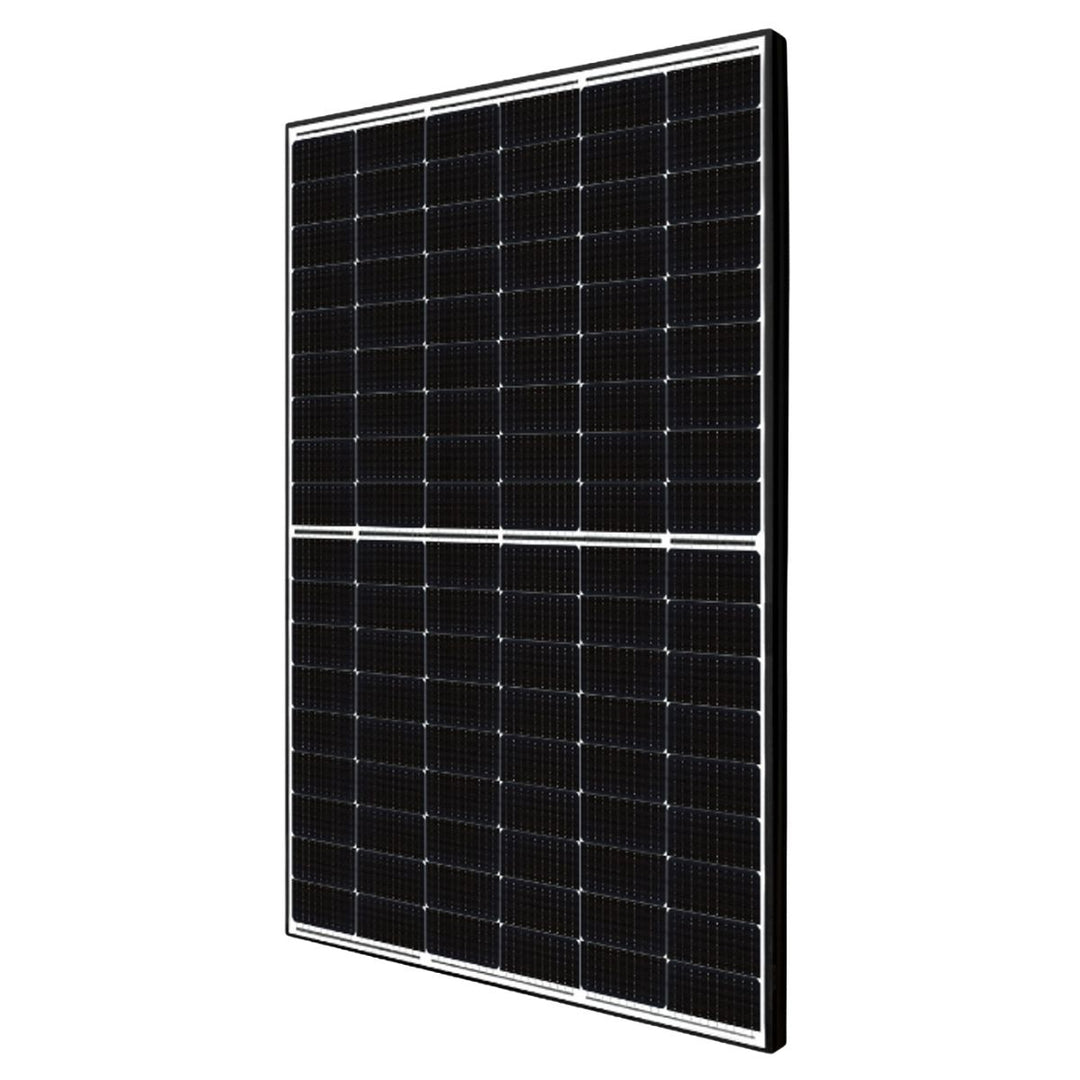

Canadian Solar HiKu6 450W CS3W Mono PERC Solar Panel

Mechanical Data

• Cell Type: Mon-crystalline
• Cell Arrangement: 144 [2 × (12 × 6)]
• Dimensions: 2108 × 1048 × 35mm
• Weight: 24.3 kg
• Front Cover: 3.2 mm tempered glass
• Frame: Anodized aluminium alloy, crossbar enhanced
• Junction Box: IP68, 3 bypass diodes
• Cable: 4.0 mm² (IEC), 12 AWG (UL)

Electrical Data NMOT

• Model: CS3W-450MS
• Nominal Max. Power (Pmax): 338 W
• Operating Voltage (Vmp): 38.5 V
• Operating Current (Imp): 8.76 A
• Open Circuit Voltage (Voc): 46.4 V
• Short Circuit Current (Isc): 9.35 A

Electrical Data STC*

• Nominal Max. Power (Pmax): 450 W
• Operating Voltage (Vmp): 41.1 V
• Operating Current (Imp): 10.96 A
• Open Circuit Voltage (Voc): 49.1 V
• Short Circuit Current (Isc): 11.60 A
• Module Efficiency: 20.4%

Environmental & Safety

• Operating Temperature: -40°C to +85°C
• Max System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 1703)
• Connector: T4 series, H4 UTX, or MC4-EV

Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
