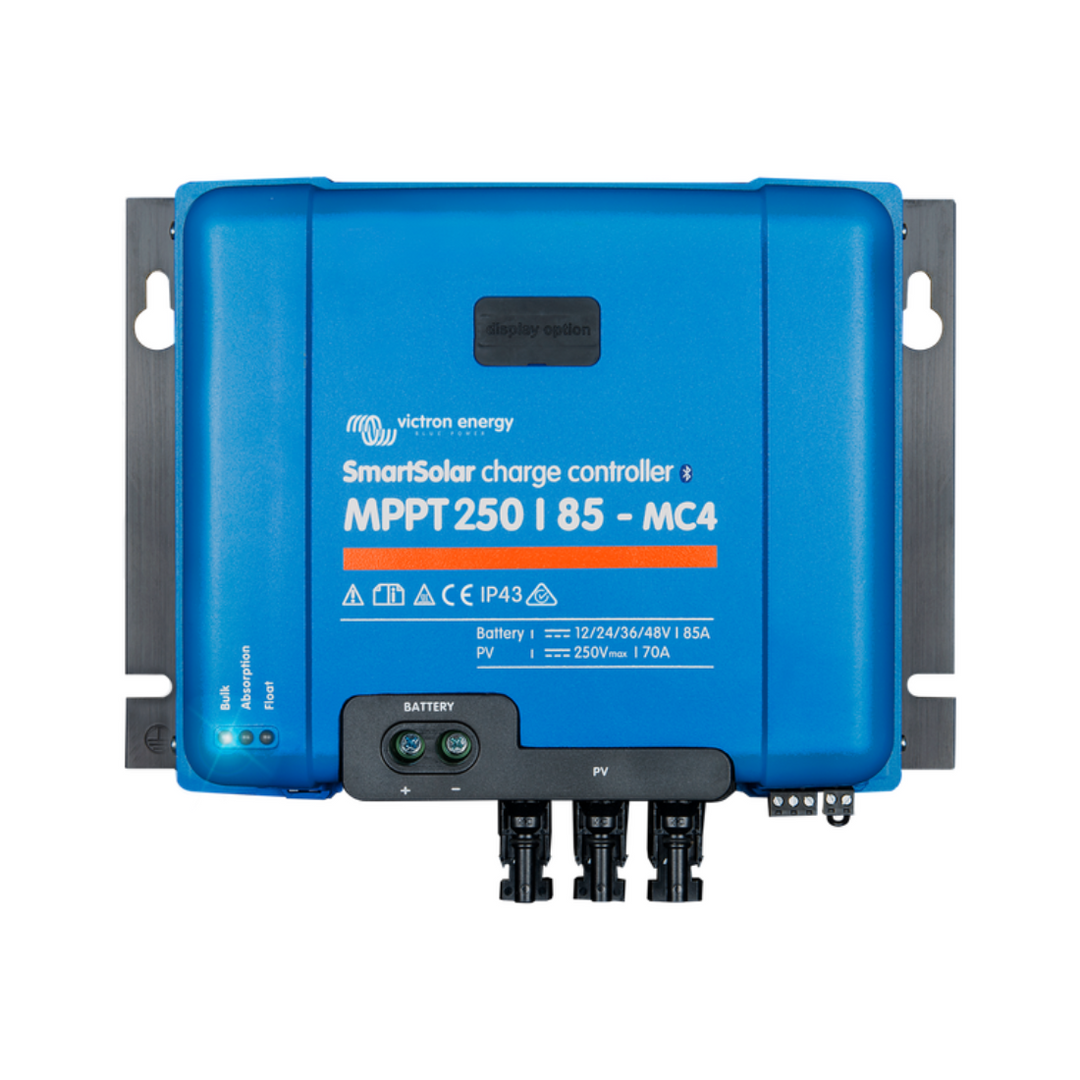

Name: Victron SmartSolar 250V/85A MC4 VE.Can MPPT Charge Controller
Brand: Victron Energy
SKU: CC-VIC-SS-MPPT-250/85MC4
Price: 10036.0 ZAR
Availability: InStock

Victron SmartSolar 250V/85A MC4 VE.Can MPPT Charge Controller

Price Save R 3,513

R 8,726⁹⁶ excl. VAT

Secure online payments

Features

Ultra-fast Maximum Power Point Tracking (MPPT).
Advanced Maximum Power Point Detection in case of partial shading conditions.
Outstanding conversion efficiency.
Flexible charge algorithm.
Extensive electronic protection.
Internal temperature sensor and optional external battery voltage and temperature sensing via Bluetooth.
Bluetooth Smart built-in: dongle not needed.
VE.Direct.
Remote on-off.
Programmable relay.
Optional: SmartSolar pluggable LCD display.

Technical Specifications Electrical

Battery voltage: 12 / 24 / 48V Auto Select (software tool needed to select 36V).
Rated charge current: 70A.
Nominal PV power, 12V: 1000W.
Nominal PV power, 24V: 2000W.
Nominal PV power, 48V: 4000W.
Max. PV short circuit current: 35A.
Maximum PV open circuit voltage: 250V absolute maximum coldest conditions; 245V start-up and operating maximum.
Maximum efficiency: 99%.
Self-consumption: Less than 35mA @ 12V / 20mA @ 48V.
Charge voltage 'absorption' Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth).
Charge voltage 'float' Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth).
Charge algorithm: Multi-stage adaptive.
Temperature compensation: -16 mV / -32 mV / -64 mV / °C
Protection: Battery reverse polarity (fuse, not user accessible) / PV reverse polarity / Output short circuit / Over temperature.
Operating temperature: -30 to +60°C (full rated output up to 40°C).
Humidity: 95%, non-condensing.
Data communication port: VE.Direct or Bluetooth.
Remote on/off: Yes (2 pole connector).
Programmable relay: DPST (AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC)
Parallel operation: Yes (not synchronized).

Enclosure

Colour: Blue (RAL 5012).
PV terminals: 35 mm² / AWG2 (Tr models).
Battery terminals: 35 mm² / AWG2.
Protection category: IP43 (electronic components), IP22 (connection area).
Weight: 3 kg.
Dimensions (h x w x d) in mm: 185 x 250 x 95.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
