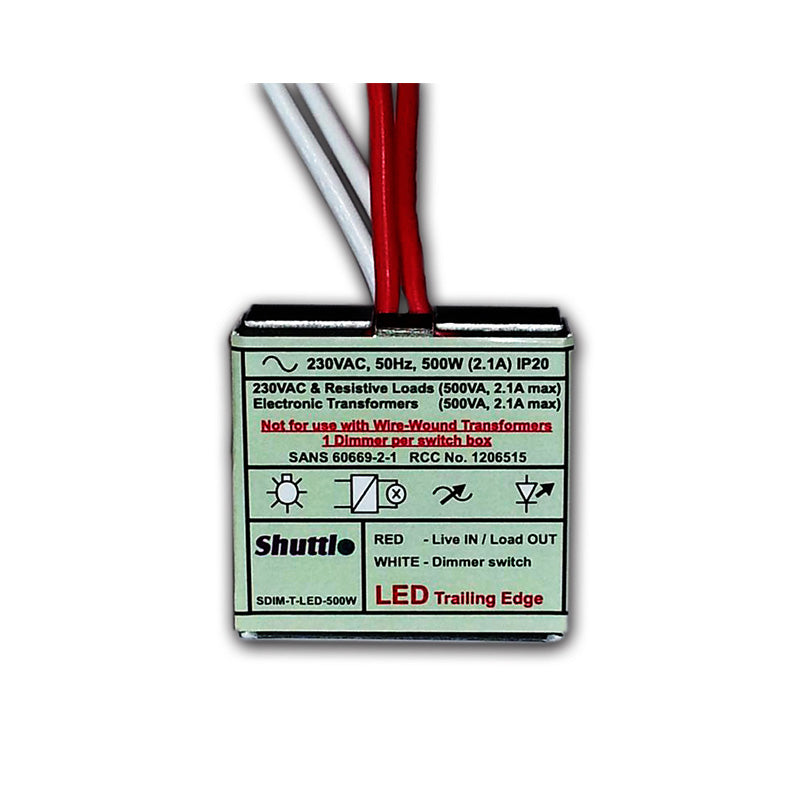

Shuttle 500W Trailing Edge LED Dimming Module

Shuttle 500W Trailing Edge LED Dimming Module

Regular price R 478.00 incl. VAT
R 41565 excl. VAT
incl. VAT/

Tax included. Shipping calculated at checkout.
  • Secure online payments

Electrical Specifications

  • Nominal Operating Voltage: 190 Vac - 253 Vac.
  • Dimming Method: Trailing Edge.
  • Minimum Operating Voltage: 100 Vac.
  • Max Wire Resistance (Bell-Press Control): 50 kΩ.
  • Minimum Load Power: (Resistance) 2 W; (Inductive) Not Compatible; (Electronic Transformer) 20W.
  • Maximum Load Power: (230 Vac; Resistive and Electronic Low Voltage) / (Dimmable LED 230 Vac and 12V) 500 VA (240 Vac) 2.1 A Max; (Wire Wound and Inductive Loads) (Florescent and CFL lighting) Not Compatible.

Software Features

  • Microprocessor Control: Yes.
  • Soft Start and Soft off: Yes.
  • Bell-Press Control: Continuous.
  • Minimum Intensity Control: Yes.
  • Memory: Yes (Returns to previous dimming level when turned on).


  • Operating temperatures: - 5 to 45 ˚C.
  • Storage temperature: -30 to 80 ˚C.
  • Maximum Housing Temperature: 85 ˚C.
  • Relative Humidity: 90% (Non-Condensing).
  • Enclosure: 42 mm x 42 mm x 12 mm (Black Aluminium).


All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
