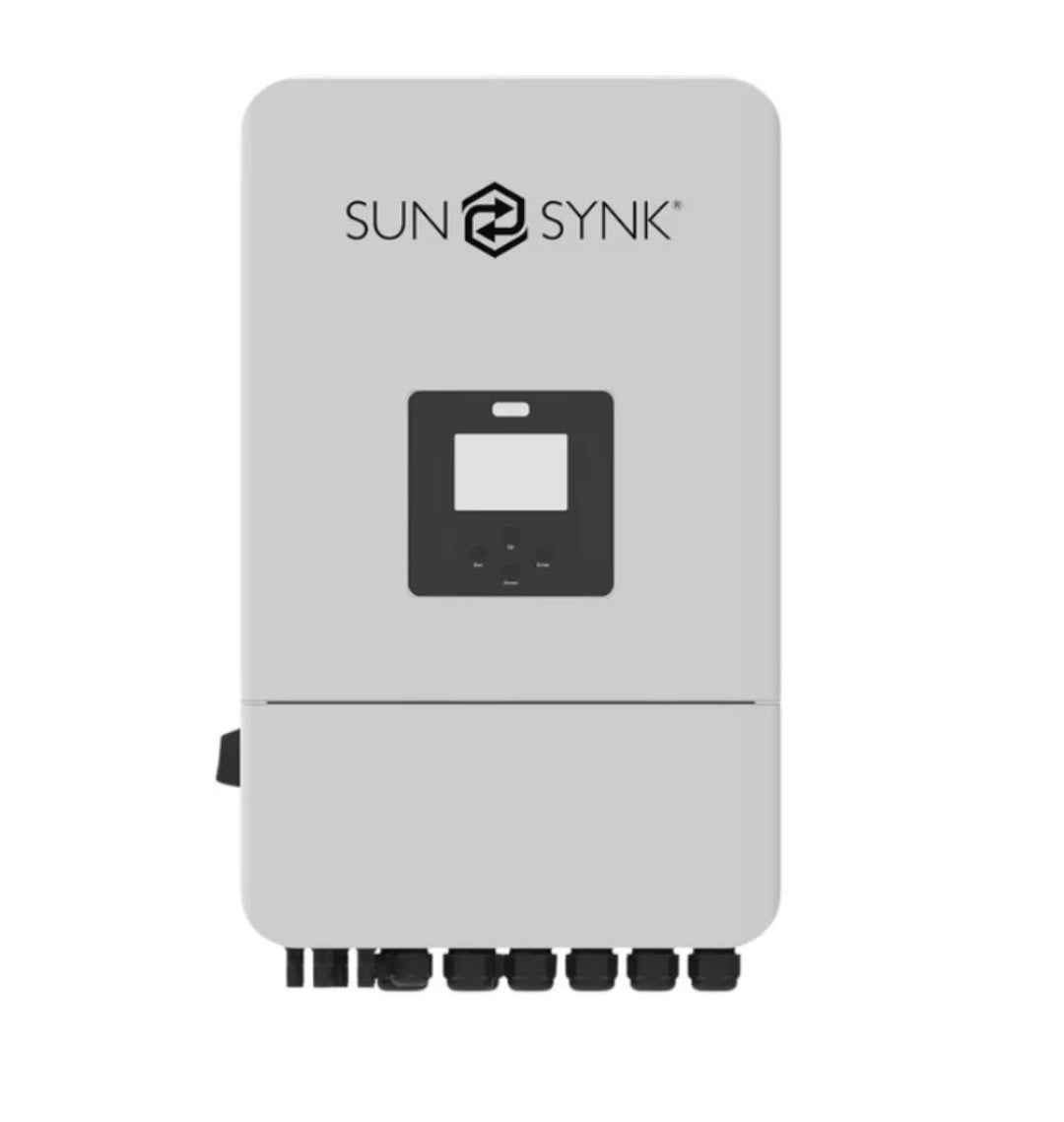

The Sunsynk 8kW compact hybrid inverter is a powerful and efficient solution for managing energy from various sources including solar, the electrical grid, and generators. Designed for flexibility and performance, it is ideal for both residential and light commercial applications.

Product Features

• Dual MPPT design with enhanced PV input power up to 12.8 kWp
• Compatible with most lithium-ion and lead-acid batteries
• Zero export functionality
• Supports parallel connection of up to 16 inverters on a single phase
• Dedicated outputs for essential and non-essential loads
• Includes Wi-Fi logger and current transformer (CT) as standard
• Standard 5-year warranty included

Technical Specifications

• Weight: 25.2 kg
• Rated power: 8,000 W
• Minimum MPPT voltage: 125 V
• Maximum MPPT voltage: 425 V
• DC startup voltage: 150 V
• DC shutdown voltage: 150 V
• Maximum input voltage: 500 V
• Maximum DC power: 12,800 W
• Maximum AC power (5 minutes): 8,800 W
• Surge AC power (1 second): 12,000 W
• Maximum DC current: 52 A
• Maximum DC inputs: 4
• DC fuses: Not included
• Connector type: Screw terminal
• Included connectors: None
• European efficiency: 96.5%
• Transformer: None
• MPPT trackers: 2
• Integrated DC switch: Yes
• Warranty: 5 years
