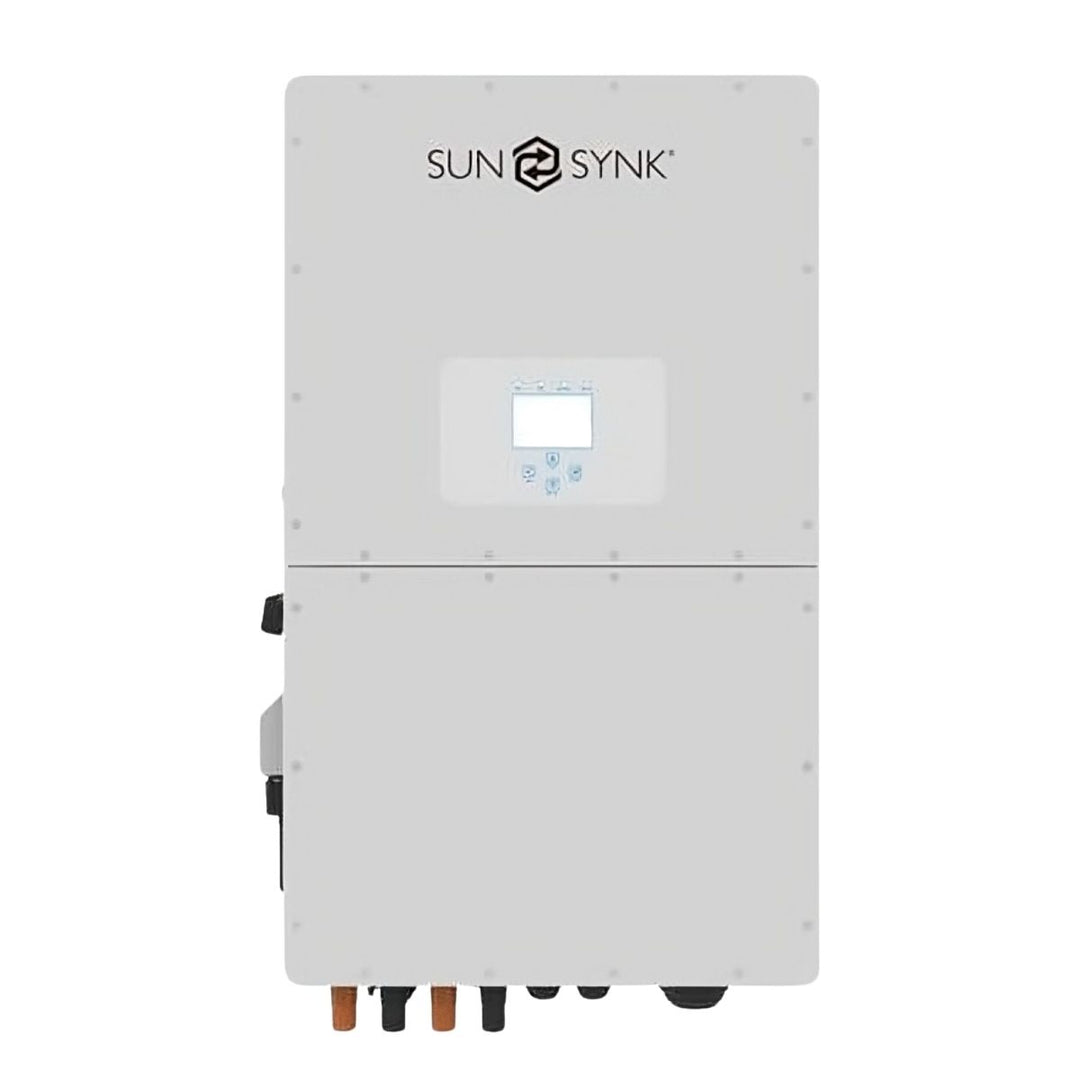

The Sunsynk 30kW three-phase high voltage hybrid inverter is the ideal commercial inverter for managing power flow from multiple sources such as solar, main electrical grid, and generator.

• Three MPPT trackers allow flexible PV array configurations.
• Allows DC oversizing up to 30% more than the rated AC power.
• Operates without batteries (using PV and grid power).
• Supports Wi-Fi remote monitoring as standard.
• Type II DC/AC SPD included.
• Overload, over-temperature, and short-circuit protection as standard.
• Supports up to 10 x 30kW inverters in parallel configuration, each with its own battery setup.

Specifications

• Weight: 102 kg
• Rated Power: 30,000 W
• Min PPT Voltage: 150 V
• Max PPT Voltage: 850 V
• DC Startup Voltage: 180 V
• DC Shutdown Voltage: 150 V
• Max Input Voltage: 1,000 V
• Max DC Power: 39,000 W
• Max AC Power (5 Minutes): 30,000 W
• Surge AC Power (1 Second): 45,000 W
• Max DC Current: 144 A
• Max DC Inputs: 6
• Has DC Fuses: 0
• Connector: MC4
• Included Connectors: 0
• Euro Efficiency: 99.9%
• Transformer: None
• MPPT Quantity: 4
• Has Integrated DC Switch: Yes
• Warranty: 5 years
