Product Overview

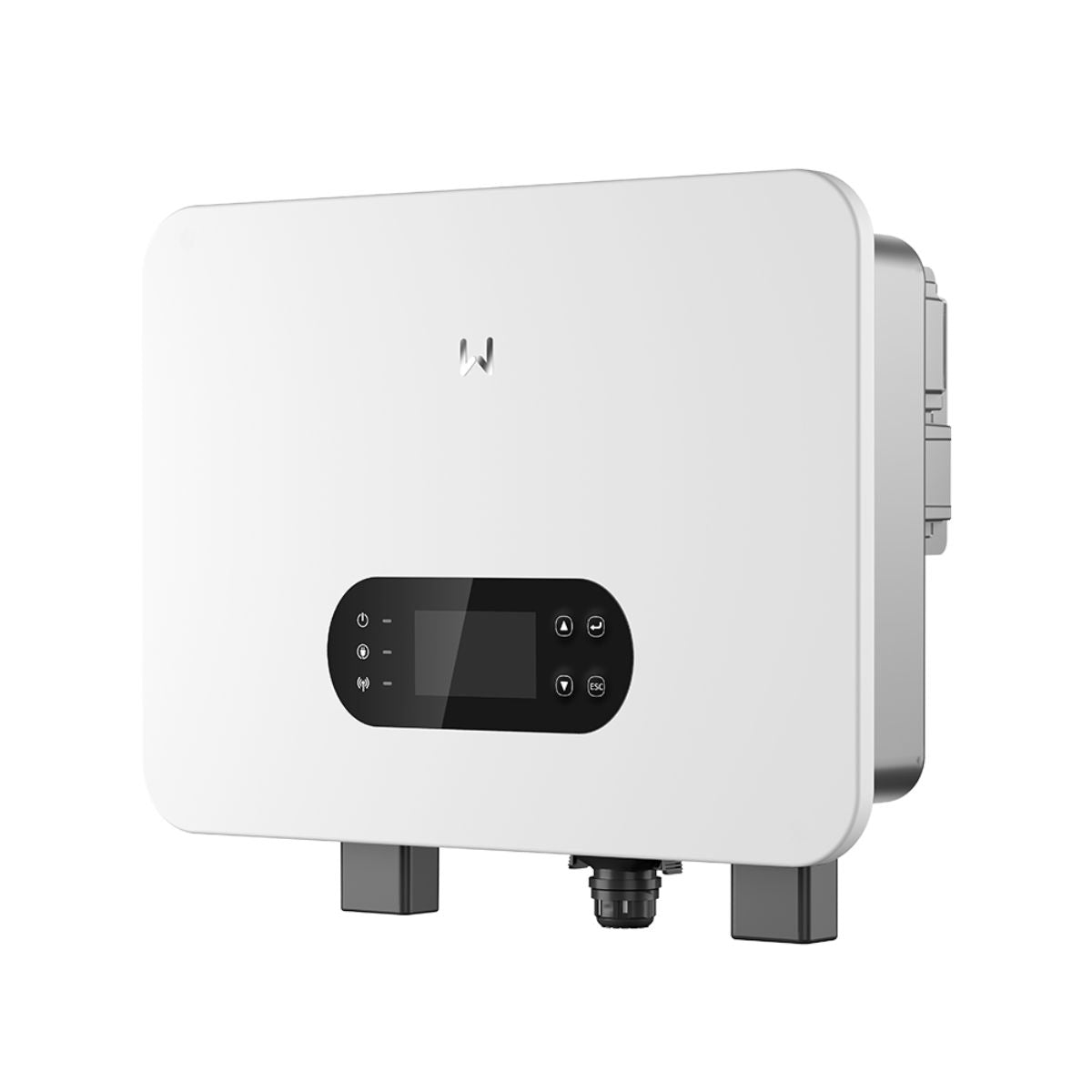

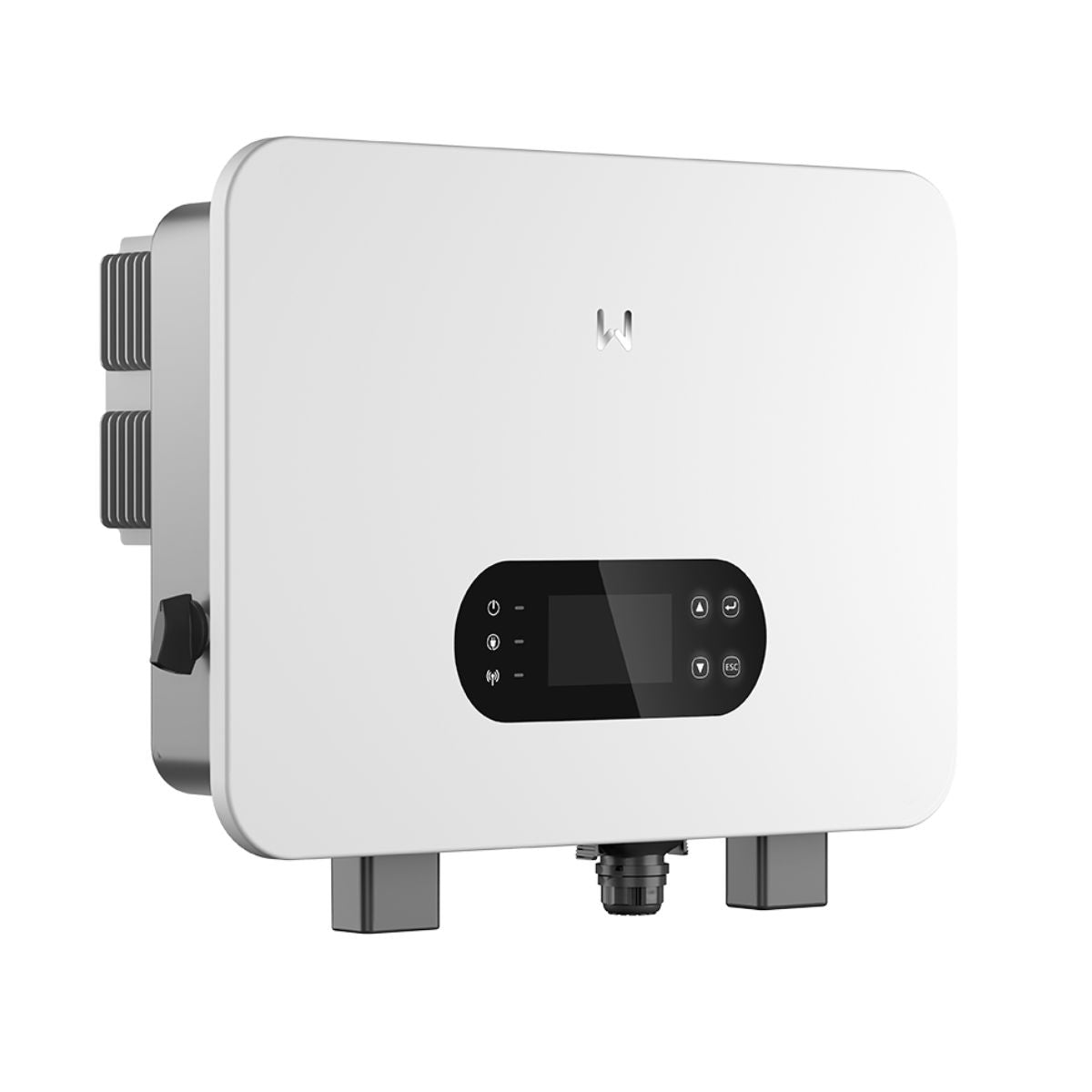

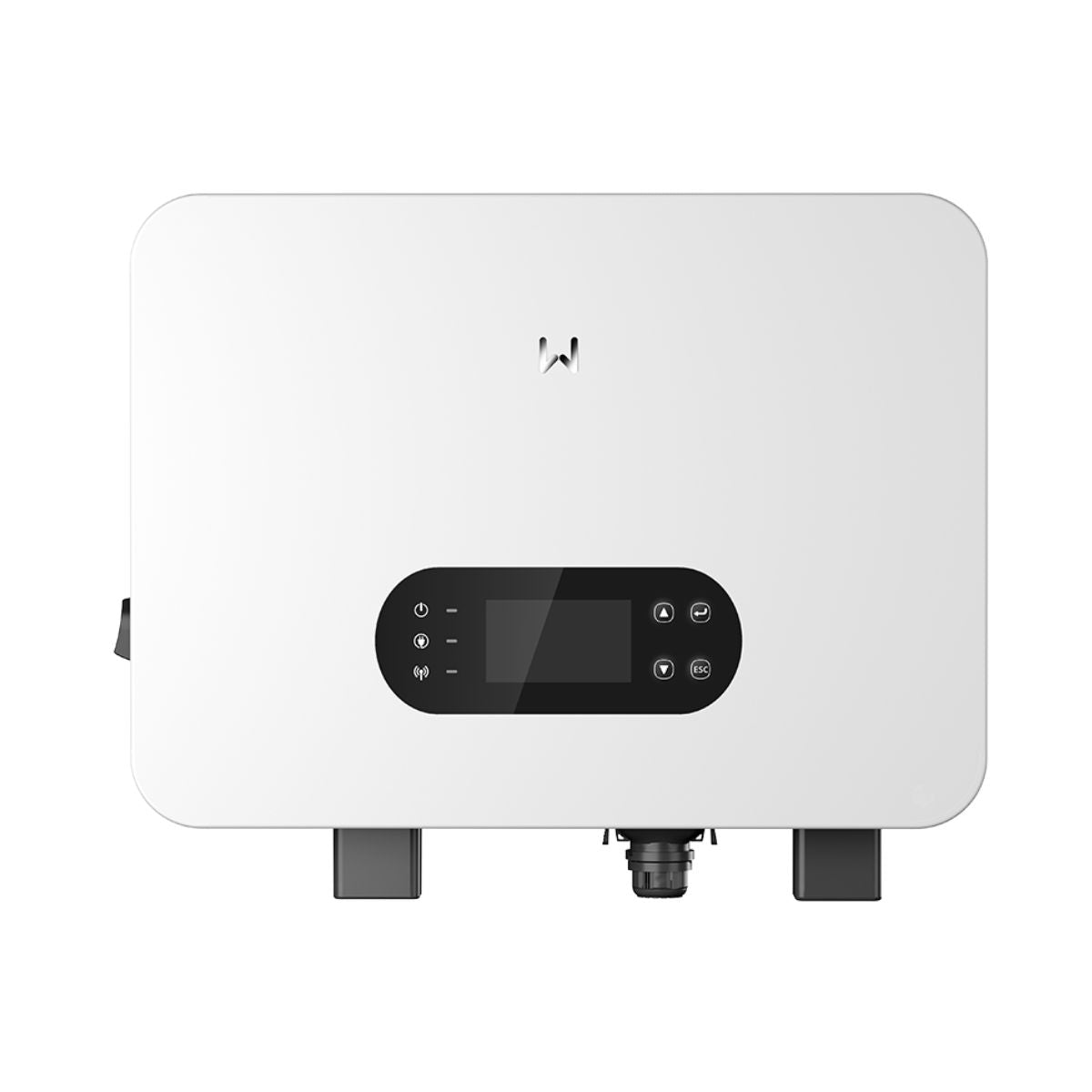

The GoodWe LV ES UniQ 5kW single-phase hybrid inverter is designed for residential solar and backup systems that use a 48V battery platform. It combines solar generation, battery storage, backup capability and smart load control in one compact unit, making it a practical option for homes that need flexible energy management and dependable backup support.
Key Features
- 5kW single-phase hybrid inverter designed for residential PV and energy storage systems.
- Compatible with 48V Li-Ion and lead-acid battery systems.
- Up to 10kW PV input capacity supports strong solar harvesting with up to 200% PV oversizing.
- Single MPPT with up to 20A input current supports modern high-current module designs.
- Seamless switching to backup in under 4ms helps keep essential loads powered during outages.
- 3-in-1 port supports generator input, smart loads and on-grid inverter integration through one connection.
- Supports on-grid and off-grid parallel operation of up to 6 units for future system expansion.
- IP66-rated enclosure supports reliable operation in demanding installation environments.
Applications
- Residential solar and battery systems.
- Backup power for essential household loads.
- Homes wanting flexible on-grid and off-grid energy management.
- Installations planning for future parallel expansion.
Why Choose This Product?
The LV ES UniQ 5kW is a solid choice for homeowners who want a low-voltage hybrid inverter with backup capability, smart load control and flexible system integration. It offers a practical balance of output capacity, battery compatibility and solar input headroom for everyday residential use.
Important Notes
- Installation should be completed by a qualified electrician or solar installer.
- Battery compatibility should be confirmed against the latest approved GoodWe battery list before publishing or installation.
- AFCI and rapid shutdown functions are listed as optional features and may depend on the final configuration.
Technical Specifications
| Specification |
Detail |
| Brand |
GoodWe |
| Model |
GW5000-ES-C10 |
| Product Type |
Single-phase hybrid inverter (LV) |
| Nominal Output Power |
5.0kW |
| Max. PV Input Power |
10.0kW |
| Battery Type |
Li-Ion / Lead-acid |
| Nominal Battery Voltage |
48V |
| Battery Voltage Range |
40 - 60V |
| Max. Continuous Charging Current |
120A |
| Max. Continuous Discharging Current |
120A |
| Max. Charging Power |
5.0kW |
| Max. Discharging Power |
5.5kW |
| MPPT Trackers |
1 |
| Max. Input Current per MPPT |
20A |
| Max. Input Voltage |
600V |
| MPPT Operating Voltage Range |
60 - 550V |
| Max. Apparent Power Output to Utility Grid |
5.5kVA |
| Back-up Nominal Apparent Power |
5.0kVA |
| Max. Efficiency |
97.6% |
| Battery to AC Efficiency |
95.5% |
| Ingress Protection Rating |
IP66 |
| Cooling Method |
Natural convection |
| Dimensions |
560 × 415 × 204mm |
| Weight |
15.5kg |
| Mounting Method |
Wall mounted |
| Communication with BMS |
CAN |
