Product Overview

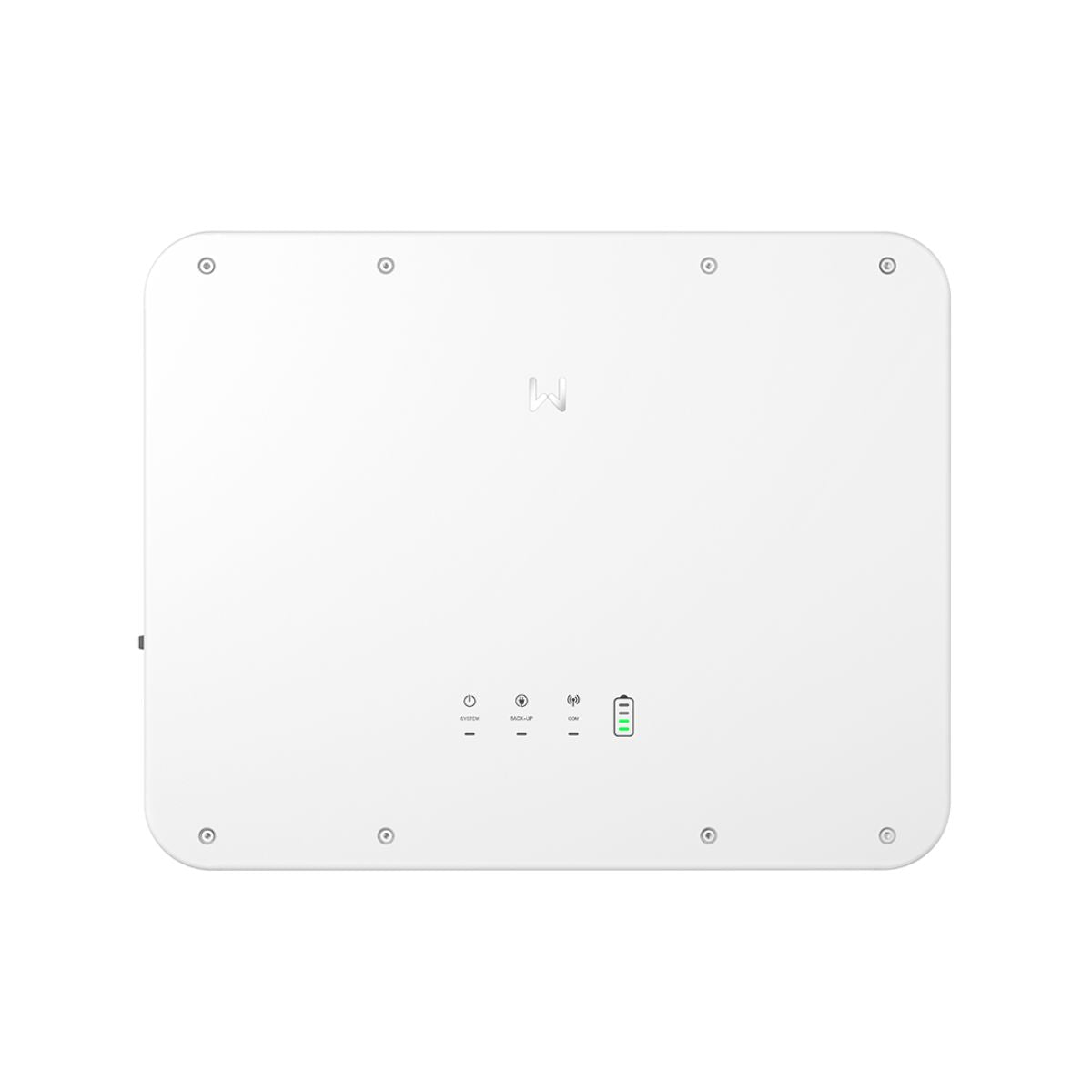

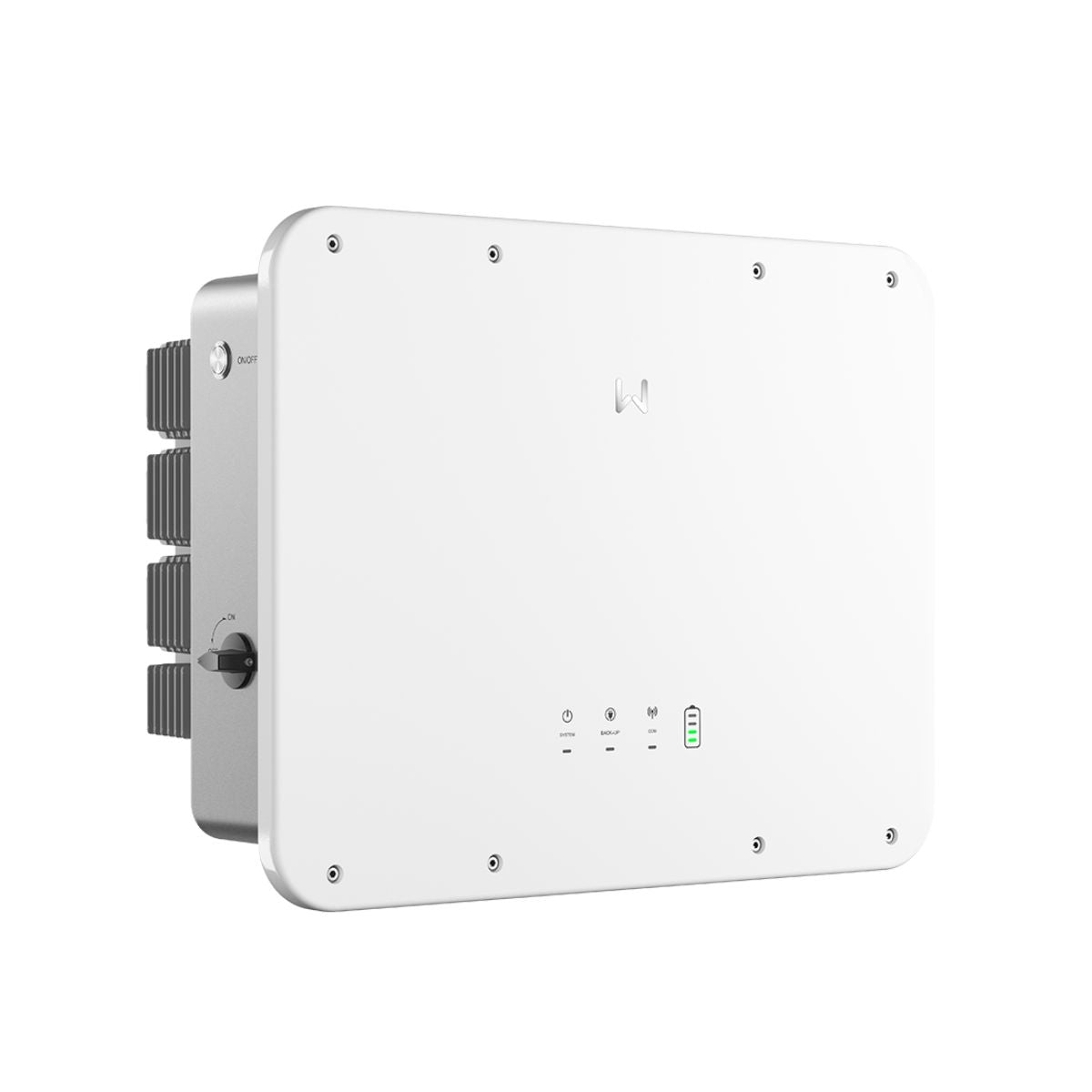

The GoodWe LV ES Uniq 12kW single-phase hybrid inverter is the highest-capacity model in the ES Uniq range, designed for demanding residential solar and backup systems running on a 48V battery platform. It brings together large PV input capacity, strong low-voltage battery performance, smart load control and backup functionality for homes with substantial energy demand.
Key Features
- 12kW single-phase hybrid inverter designed for larger residential PV and energy storage systems.
- Compatible with 48V Li-Ion and lead-acid battery systems.
- Up to 24kW PV input capacity supports larger solar arrays with up to 200% PV oversizing.
- 2 MPPTs with up to 32A / 32A max input current support flexible array layouts and higher-current modules.
- Up to 240A continuous charging and discharging current supports higher battery throughput.
- Seamless switching to backup in under 4ms helps keep essential loads supplied during outages.
- 3-in-1 port supports generator input, smart loads and on-grid inverter integration.
- Supports on-grid and off-grid parallel operation of up to 6 units for larger scalable systems.
Applications
- High-demand residential solar and battery systems.
- Homes requiring strong single-phase backup capability.
- Installations needing more PV capacity and broader roof-layout flexibility.
- Projects planning for future system expansion through parallel inverter operation.
Why Choose This Product?
The LV ES Uniq 12kW is a strong option for households that need the highest output in the ES Uniq range while staying on a low-voltage battery platform. Its high PV input headroom, strong battery current capability and flexible hybrid features make it well suited to advanced residential self-consumption and backup systems.
Important Notes
- Installation should be completed by a qualified electrician or solar installer.
- Battery compatibility should be confirmed against the latest approved GoodWe battery list before publishing or installation.
- AFCI and rapid shutdown functions are listed as optional features and may depend on the final configuration.
Technical Specifications
| Specification |
Detail |
| Brand |
GoodWe |
| Model |
GW12K-ES-C10 |
| Product Type |
Single-phase hybrid inverter (LV) |
| Nominal Output Power |
12.0kW |
| Max. PV Input Power |
24.0kW |
| Battery Type |
Li-Ion / Lead-acid |
| Nominal Battery Voltage |
48V |
| Battery Voltage Range |
40 - 60V |
| Max. Continuous Charging Current |
240A |
| Max. Continuous Discharging Current |
240A |
| Max. Charging Power |
12.0kW |
| Max. Discharging Power |
13.2kW |
| MPPT Trackers |
2 |
| Max. Input Current per MPPT |
32A / 32A |
| Max. Input Voltage |
600V |
| MPPT Operating Voltage Range |
60 - 550V |
| Max. Apparent Power Output to Utility Grid |
13.2kVA |
| Back-up Nominal Apparent Power |
12.0kVA |
| Max. Efficiency |
97.6% |
| Battery to AC Efficiency |
95.5% |
| Ingress Protection Rating |
IP66 |
| Cooling Method |
Smart fan cooling |
| Dimensions |
560 × 444.5 × 226mm |
| Weight |
29.0kg |
| Mounting Method |
Wall mounted |
| Communication with BMS |
CAN |
