Sunsynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System

Sunsynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System

Sunsynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System

Regular price R 133,443.00 incl. VAT Sale price R 111,202.20 incl. VATSave R 22,240.80
R 96,69757 excl. VAT
incl. VAT/
Please choose your roof mounting system here if required.


Tax included. Shipping calculated at checkout.
  • Secure online payments

Maximize Your Solar Energy Usage with the SunSynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System. Achieve peak efficiency and reliability with the SunSynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System. Designed for professional-grade performance, this system generates an estimated annual output of 11,936kWh, utilizing advanced PV Performance Estimation and New MCS Calculation.

System Highlights

  • Installed Capacity (kWp, STC): 6,060 Wp
  • Orientation: 0° from North
  • Inclination: 35° from horizontal
  • Shade Factor (SF): 1.00
  • Estimated Annual Output: 11,936 kWh

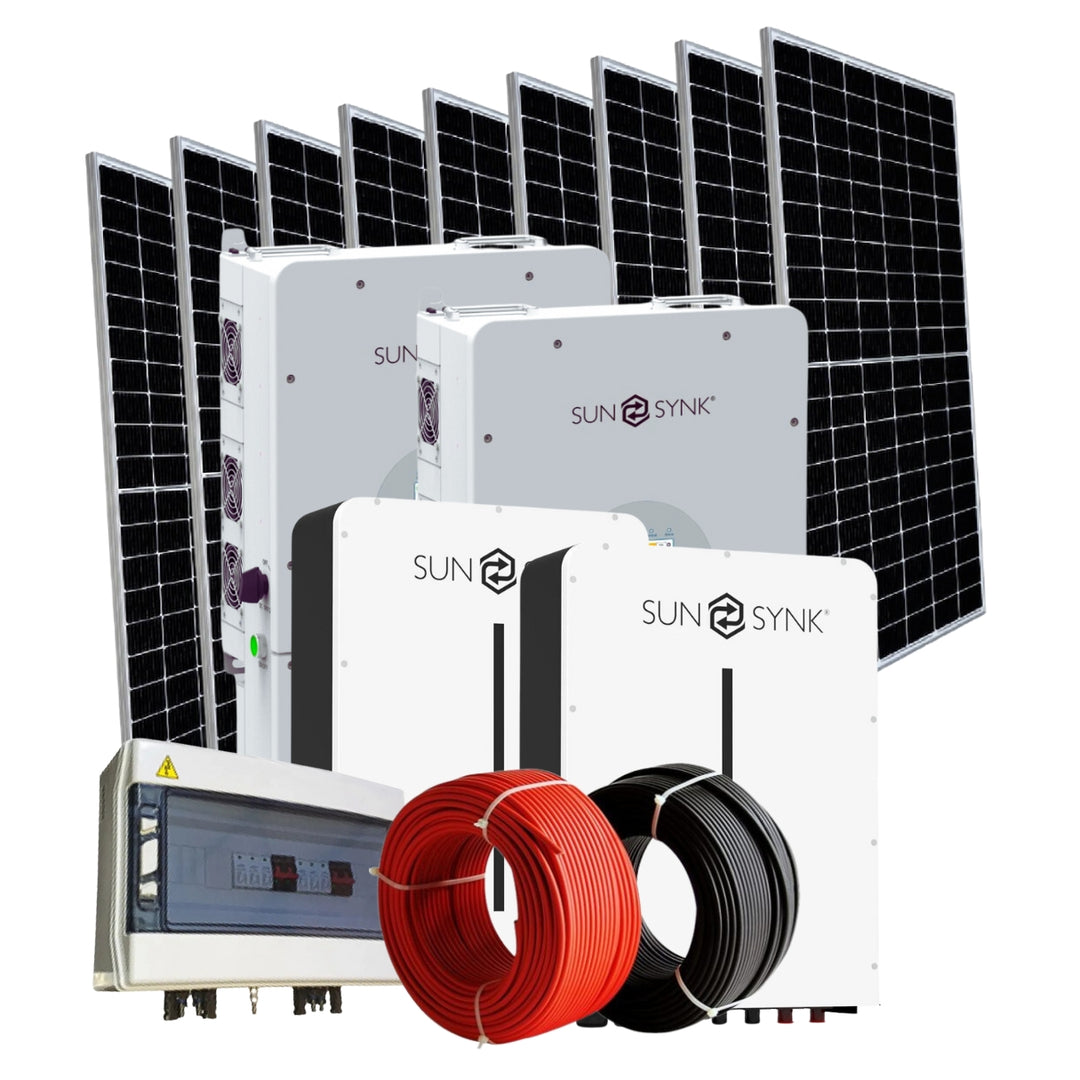

Kit Components

  • 1 x SunSynk 8KW 48V Single Phase Hybrid Inverter
  • 2 x SunSynk Wall Mount 5.12kWh 51.2V Lithium Battery
  • 12 x JA Solar 505W Mono PERC Half-Cell MBB Silver Frame Solar Panels
  • 1 x PV on Roof and Hazard Labels Pack
  • 2 x MC4-EVO2 Connector Twin Pack
  • 2 x MC4 Pre-terminated Cable (2m)
  • 2 x K&N 40A Single Phase AC Switch Disconnector
  • 1 x Earth Neutral Bridge Single Phase 50A AC Protection Box
  • 1 x 600V Protection Box (2 Inputs, 2 Outputs, 16A Isolator Type I_II SPD)
  • 2 x Sustainable 70mm² Single-core HV DC Cable (1m - Pair)
  • 50 x Sustainable 4mm² Black Double Insulated Halogen Free Solar Cable

Solar Panel Specifications

  • Cell Type: Mono
  • Weight: 26kg ± 3%
  • Dimensions: 2093 × 1134 × 30 mm
  • Cable Cross Section Size: 4 mm² (IEC), 12 AWG (UL)
  • Number of Cells: 132 (6 × 22)
  • Junction Box: IP67, 3 diodes
  • Connector: MC4-EV02/QC 4.10-35
  • Cable Length: Portrait: 200mm(+) / 300mm(-) (Including Connector), Landscape: 1200mm(+) / 1200mm(-)
  • Packaging Configuration: 36 pcs/Pallet, 792 pcs/40HQ Container

Inverter Specifications - SunSynk 8K Hybrid Inverter

  • Phases: 1
  • Number of MPPT: 2
  • Rated AC Power: 8,000 W
  • Max DC Current: 35.50 A
  • Voltage: 500 V
  • PP Voltage: 125 V - 425 V Max

Electrical Specifications - SunSynk 8K Hybrid Inverter

  • Quantity: 1
  • String Quantity: 2
  • Strings Configuration: (1x12) (1x12)
  • String Voc at 0°C: 519.6 V
  • Input Isc at 80°C: 10.02 A
  • Distance to Array: 12 m
  • Cable Area: 6 mm²
  • Voltage Drop: 0.51%

Battery Specifications - SunSynk Wall Mount 5.12kWh 51.2V Lithium Battery

  • System Type: Full Hybrid
  • Battery Type: Lithium-Ion
  • Usable Battery Capacity: 10,240 Wh
  • Voltage: 48 V
  • Max Charge Current: 100 A
  • Max Discharge Current: 100 A

Optimize your energy usage and achieve sustainability with the SunSynk 8kW Self Consumption Solar Power System. Explore more details and order now: SunSynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
