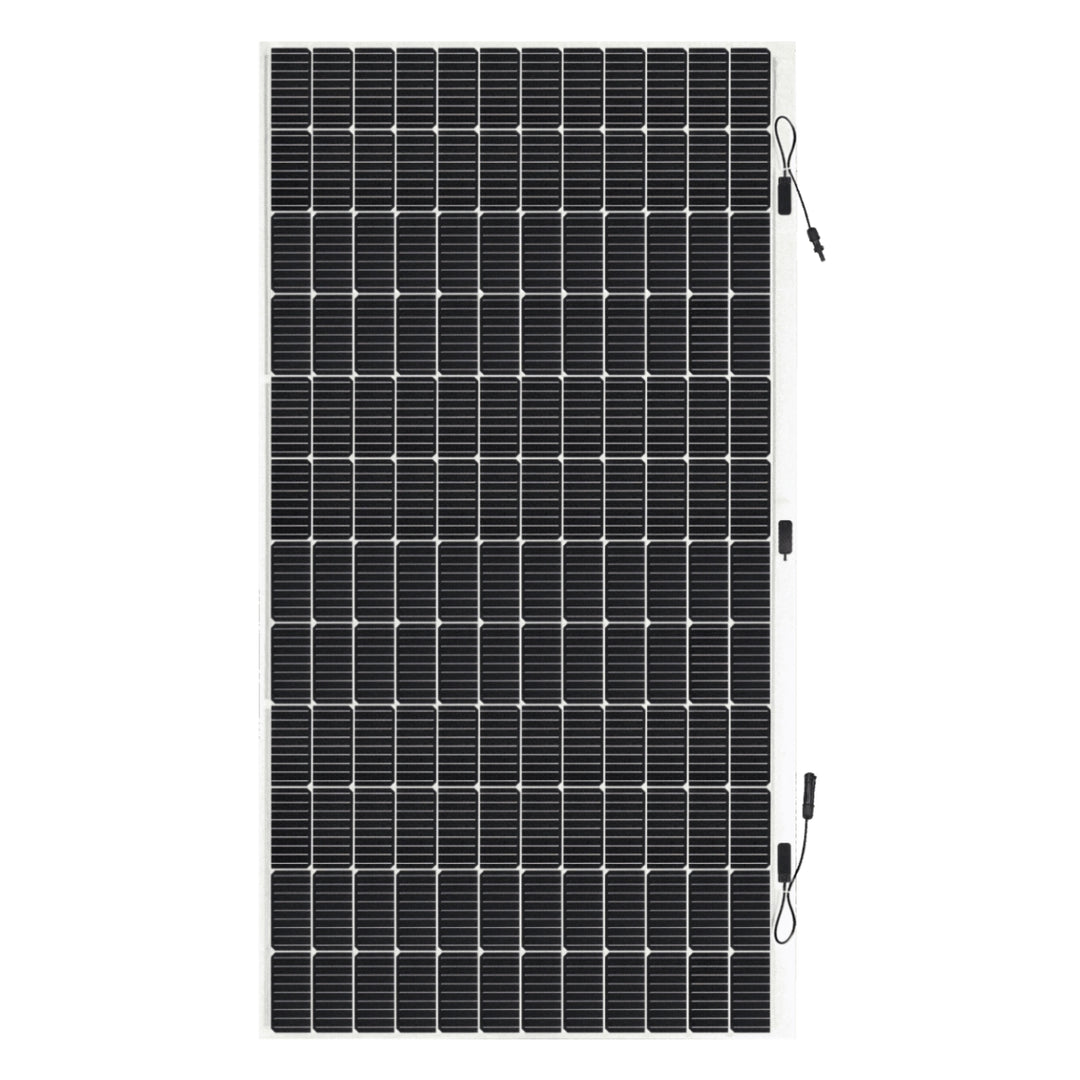

Step into the Future of Solar with Sunman Africa
Key Features
-

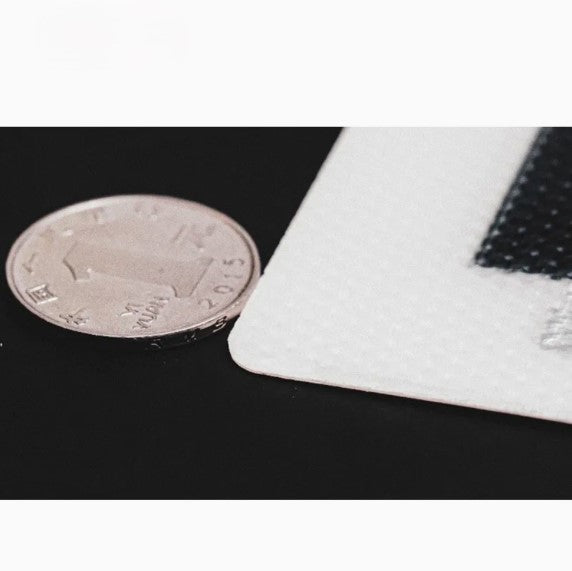

Ultra-light: Weighs just 7.2kg - 70% lighter than traditional glass modules.
-

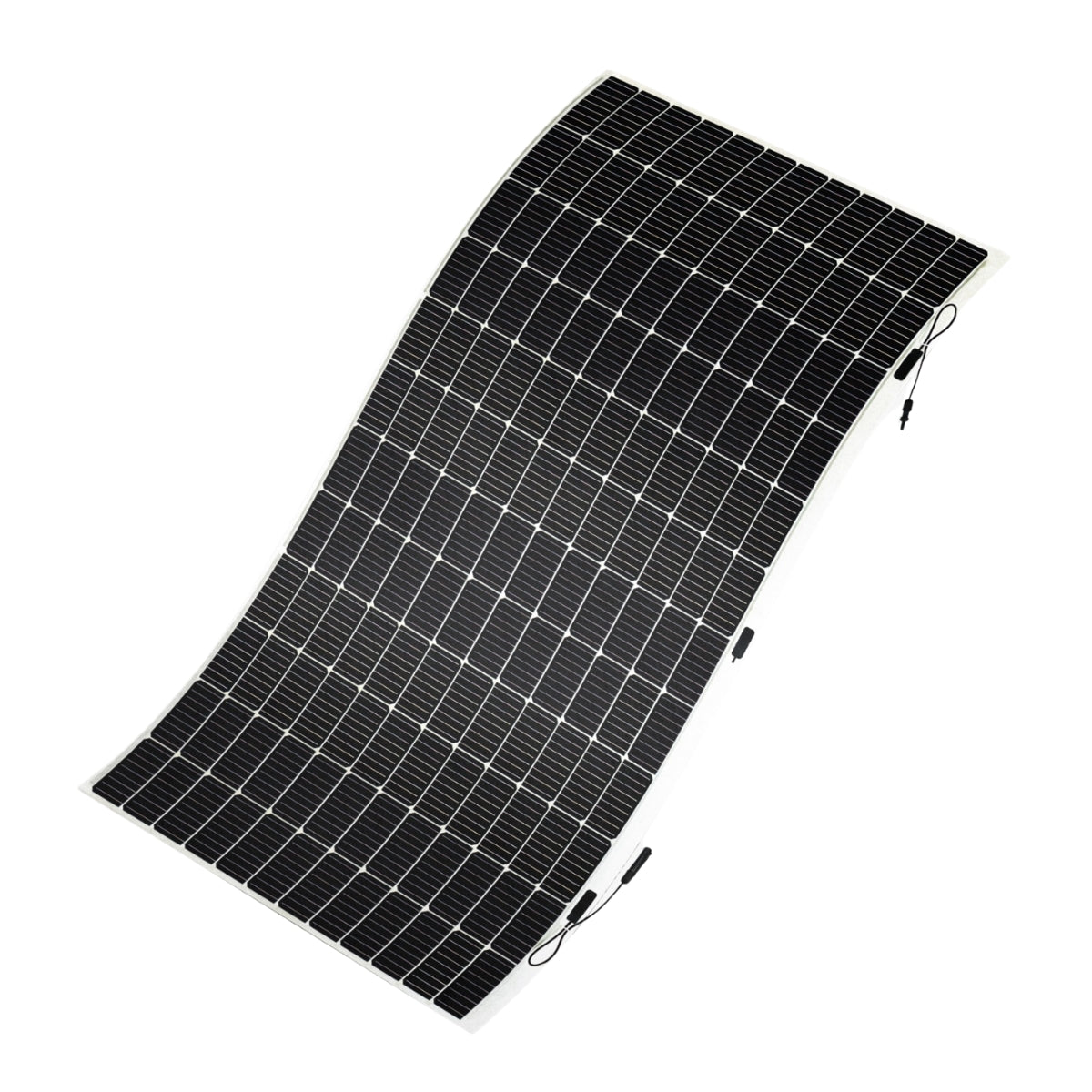

Aesthetic: Seamless integration with the underlying installation surface.
-
Effortless Installation: Uses "Quick Bonding" technology, requires no roof penetration, reduces time on the roof by 40%, and eliminates the need for mounting hardware.
-
Durable: First glassless module to pass all conventional glass durability tests, including PID, salt mist, and ammonia corrosion.
-
Warranty: 12 years of reliable performance coverage.
Electrical Specifications
| Maximum Power Voltage (Vmp) |
42.26 V |
| Maximum Power Current (Imp) |
12.31 A |
| Open-circuit Voltage (Voc) |
49.54 V |
| Short-circuit Current (Isc) |
13.56 A |
| Module Efficiency |
19.34% |
| Operating Temperature |
-40°C to 85°C |
| Maximum System Voltage |
1500 V DC (IEC) |
| Maximum Series Fuse Rating |
20 A |
| Application Class |
Class A |
| Power Tolerance |
0 / +5 W |
STC: Irradiance 1000W/m², Cell temperature 25°C, AM=1.5
Mechanical Characteristics
| Product Model |
SMF520J-12X12UW-S |
| Solar Cell Type |
Mono (7 inches) |
| Number of Cells |
144 (12 × 12) |
| Module Dimensions |
2246 × 1197 × 2 mm |
| Weight |
7.3 kg |
| Backsheet |
White |
| Junction Box |
IP68 rated |
| Output Cables |
4.0 mm² photovoltaic cable, (+)150 mm / (-)450 mm |

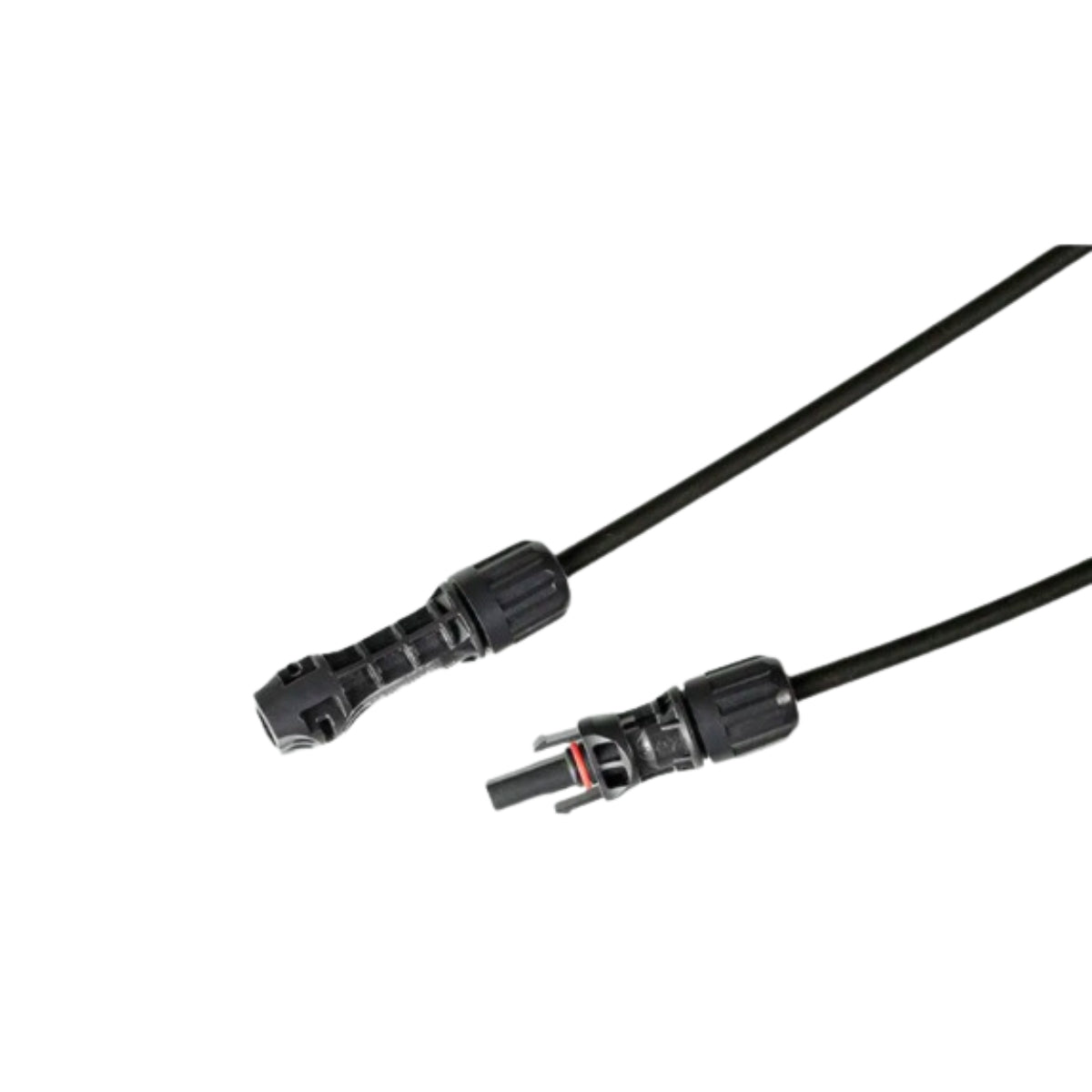

| Connector |
MC4-EVO2 compatible |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
