Product Description

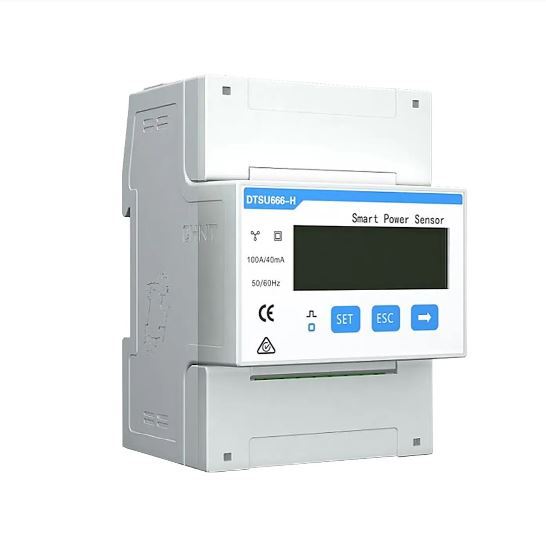

The DTSU666-HW/YDS60-80 Smart Power Meter features Class 2 Measurement Accuracy, an LCD Display, easy configuration and verification, and an overall power consumption of no more than 1.5 W.

 Specifications:

• Dimension (H x W x D): 100 x 72 x 80 mm, (3.9 x 2.8 x 3.1 inch)
• Mounting Type: DIN35 Rail
• Weight Including Cables: < 0.5 kg
• Power Grid Type : 3P4W/3P3W
• Input Voltage: 90 ~ 500 Vac
• Power Consumption: ≤ 1.5 W
• Line Voltage: 90 Vac ~ 1000 Vac (> 500 with external PT 1)
• Phase Voltage: 52~577 Vac
• Current:0 ~ 80 A(>80 with external CTs 2v
• Voltage/ Current: ±0.5 %
• Power/ Energy: ±1 %
• Frequency:  ±0.01 Hz
• Interface: RS485
• Baud Rate: 4800/9600/19200/115200 (Default 9600bps)
• Communication Protocol: Modbus-RTU
• Operating Temperature Range
• Storage Temperature:: -25 ℃ ~ 60 ℃
• Operating Humidity: -40 ℃ ~ 70 ℃
• Accessories: RS485 Cable (10 m / 33 ft.)
• Certifications: CE, RCM, and UKCA
• Power Grid System: Three-phase four-wire or three-phase three-wire
• Nominal Voltage: 230 V AC/400 V AC, 50 Hz/60 Hz
