Product Overview

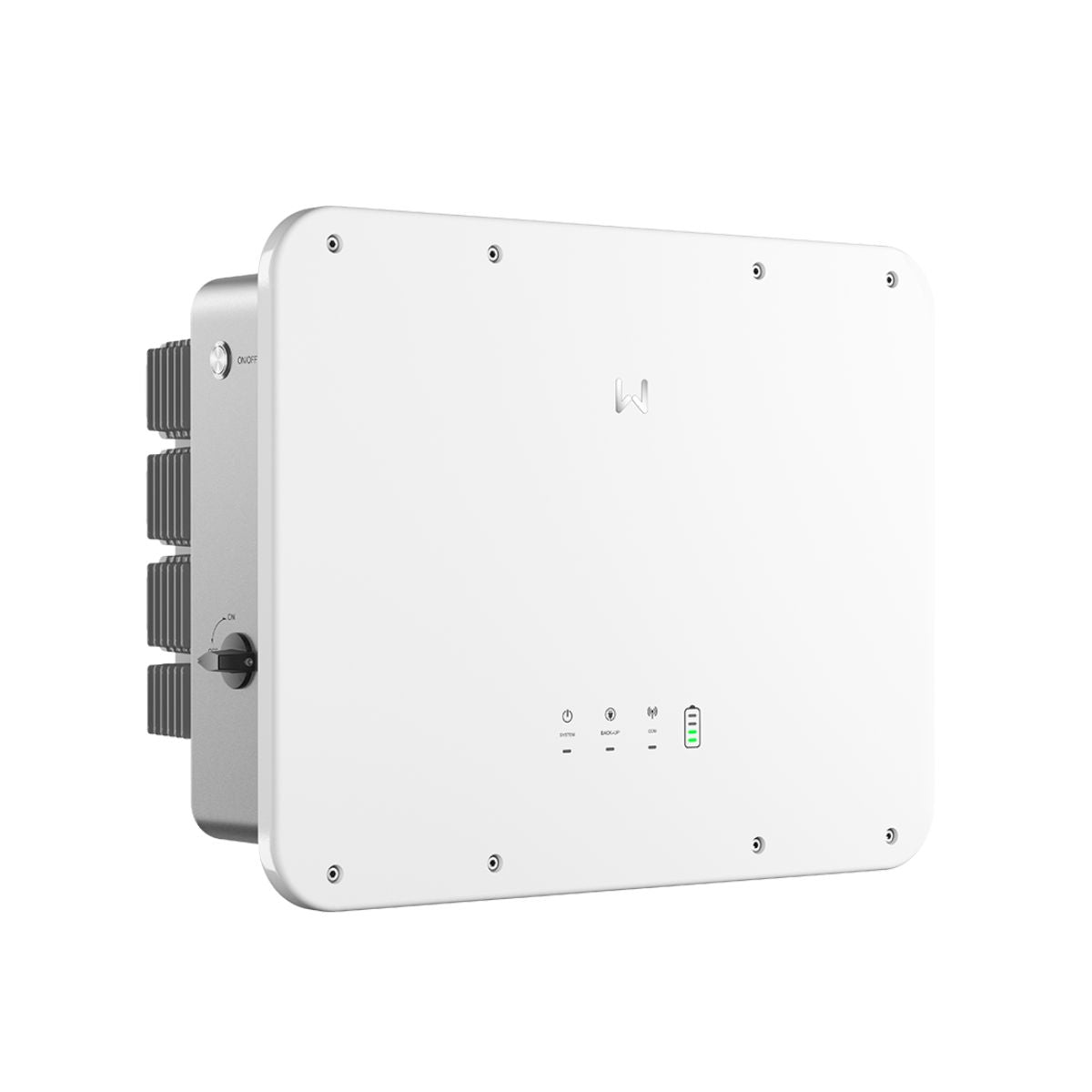

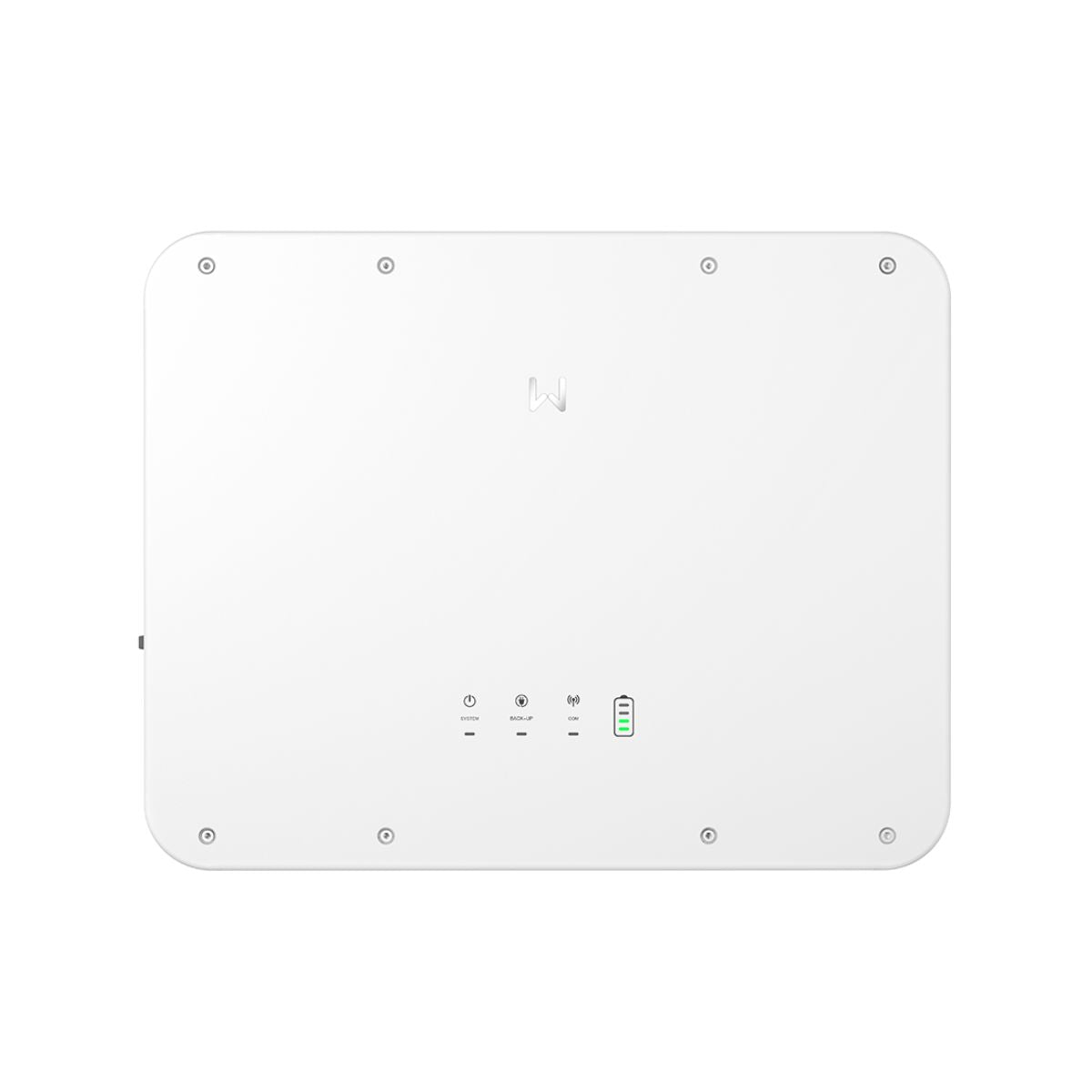

The GoodWe LV ES Uniq 10kW single-phase hybrid inverter is designed for larger residential solar and backup systems that need high output capacity on a 48V battery platform. It combines solar generation, battery storage, smart load control and backup capability in one unit, making it suitable for homes with heavier demand and more advanced energy management requirements.
Key Features
- 10kW single-phase hybrid inverter designed for residential PV and energy storage systems.
- Compatible with 48V Li-Ion and lead-acid battery systems.
- Up to 20kW PV input capacity supports larger array designs with up to 200% PV oversizing.
- 2 MPPTs with up to 32A / 32A max input current improve flexibility across multiple roof orientations and higher-current module strings.
- Up to 200A continuous charging and discharging current supports stronger battery throughput.
- Seamless switching to backup in under 4ms helps keep essential loads supplied during outages.
- 3-in-1 port supports generator input, smart loads and on-grid inverter integration.
- Supports on-grid and off-grid parallel operation of up to 6 units for scalable installations.
Applications
- Larger residential solar and battery systems.
- Homes with higher daily consumption and stronger backup requirements.
- Installations requiring flexible PV design across multiple roof sections.
- Projects planning for future expansion through parallel inverter operation.
Why Choose This Product?
The LV ES Uniq 10kW is well suited to homeowners who need more power, more PV headroom and stronger low-voltage battery capability in a single-phase system. Its dual-MPPT design, high battery current capability and broad system integration features make it a practical option for demanding residential backup and self-consumption applications.
Important Notes
- Installation should be completed by a qualified electrician or solar installer.
- Battery compatibility should be confirmed against the latest approved GoodWe battery list before publishing or installation.
- AFCI and rapid shutdown functions are listed as optional features and may depend on the final configuration.
Technical Specifications
| Specification |
Detail |
| Brand |
GoodWe |
| Model |
GW10K-ES-C10 |
| Product Type |
Single-phase hybrid inverter (LV) |
| Nominal Output Power |
10.0kW |
| Max. PV Input Power |
20.0kW |
| Battery Type |
Li-Ion / Lead-acid |
| Nominal Battery Voltage |
48V |
| Battery Voltage Range |
40 - 60V |
| Max. Continuous Charging Current |
200A |
| Max. Continuous Discharging Current |
200A |
| Max. Charging Power |
10.0kW |
| Max. Discharging Power |
11.0kW |
| MPPT Trackers |
2 |
| Max. Input Current per MPPT |
32A / 32A |
| Max. Input Voltage |
600V |
| MPPT Operating Voltage Range |
60 - 550V |
| Max. Apparent Power Output to Utility Grid |
11.0kVA |
| Back-up Nominal Apparent Power |
10.0kVA |
| Max. Efficiency |
97.6% |
| Battery to AC Efficiency |
95.5% |
| Ingress Protection Rating |
IP66 |
| Cooling Method |
Smart fan cooling |
| Dimensions |
560 × 444.5 × 226mm |
| Weight |
29.0kg |
| Mounting Method |
Wall mounted |
| Communication with BMS |
CAN |
