Product Overview

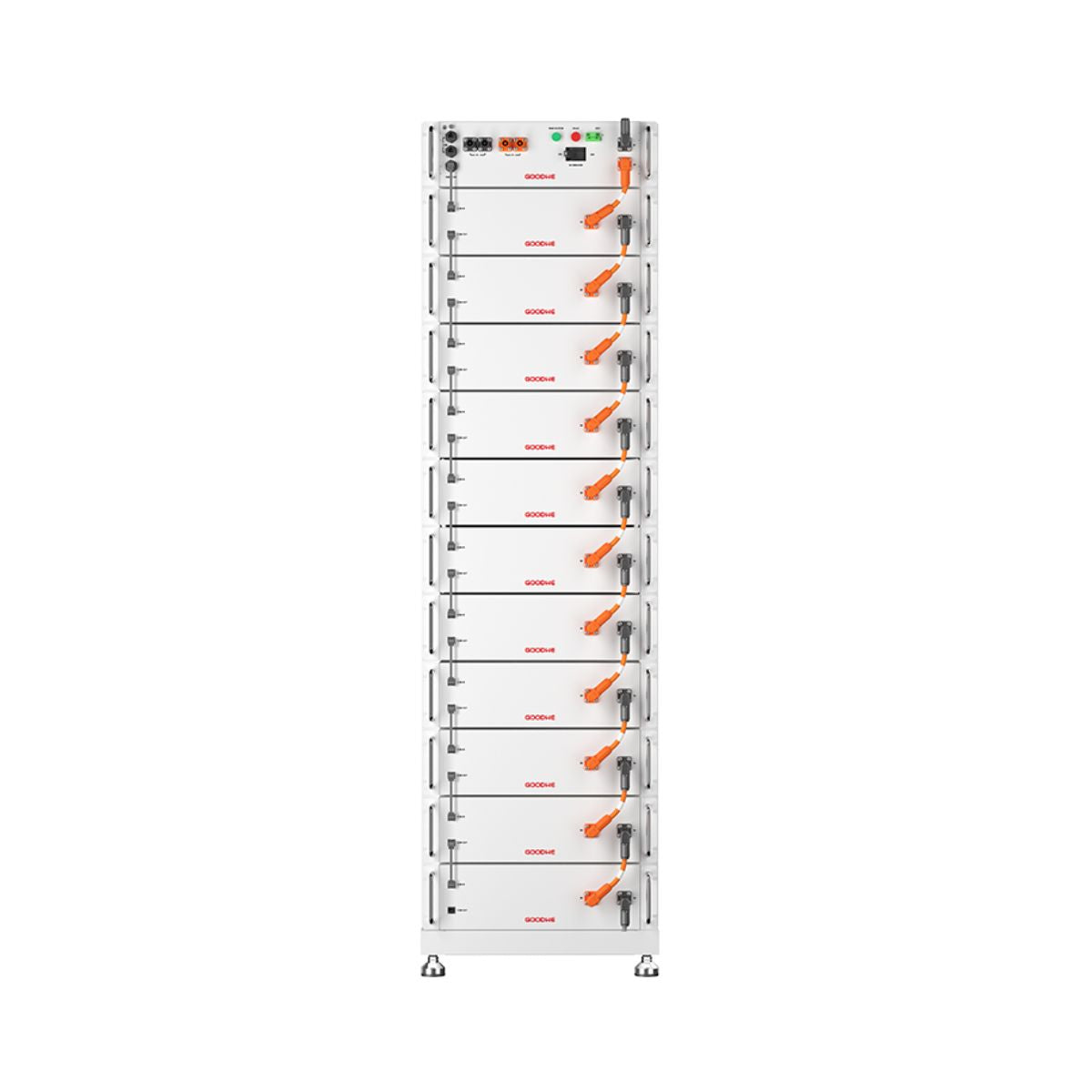

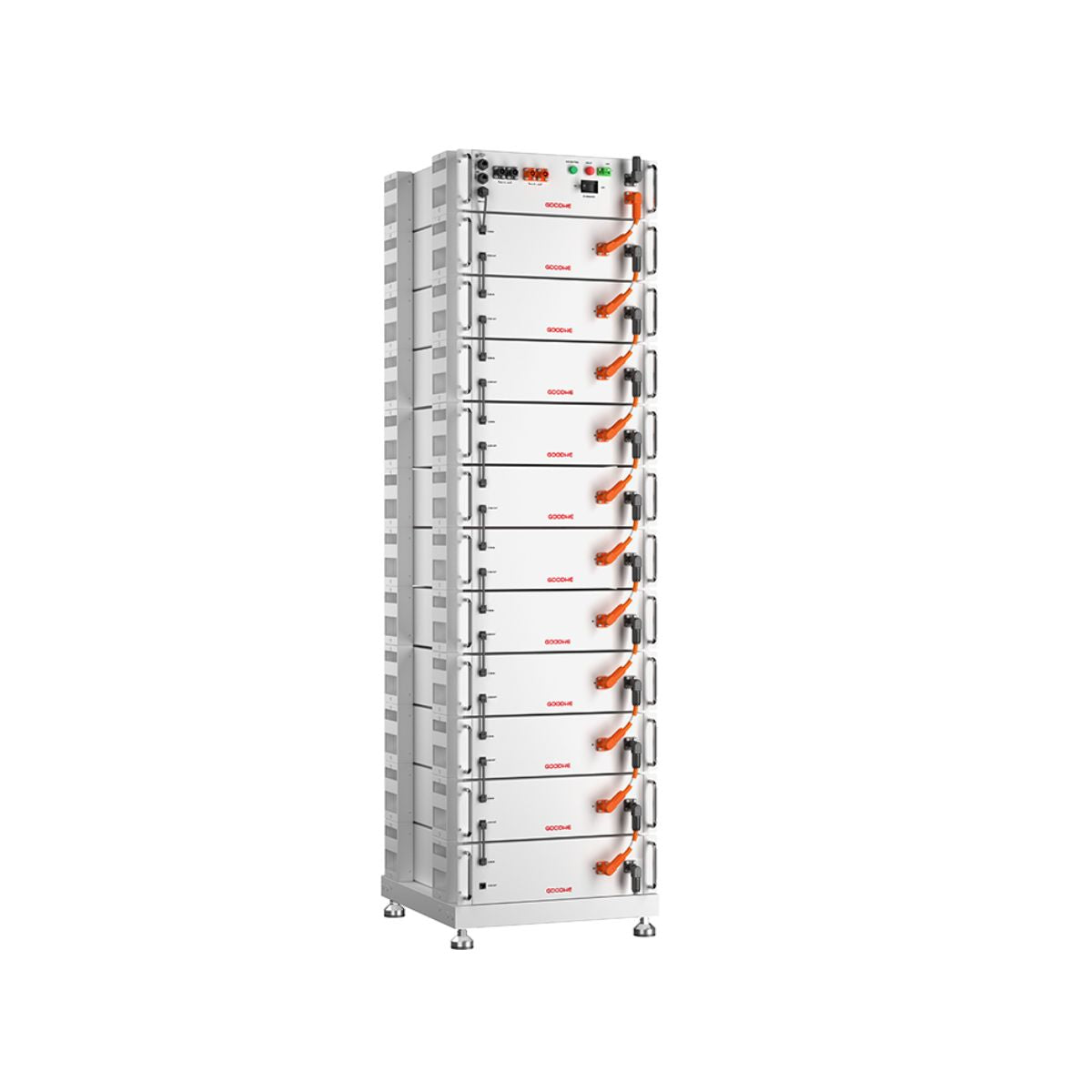

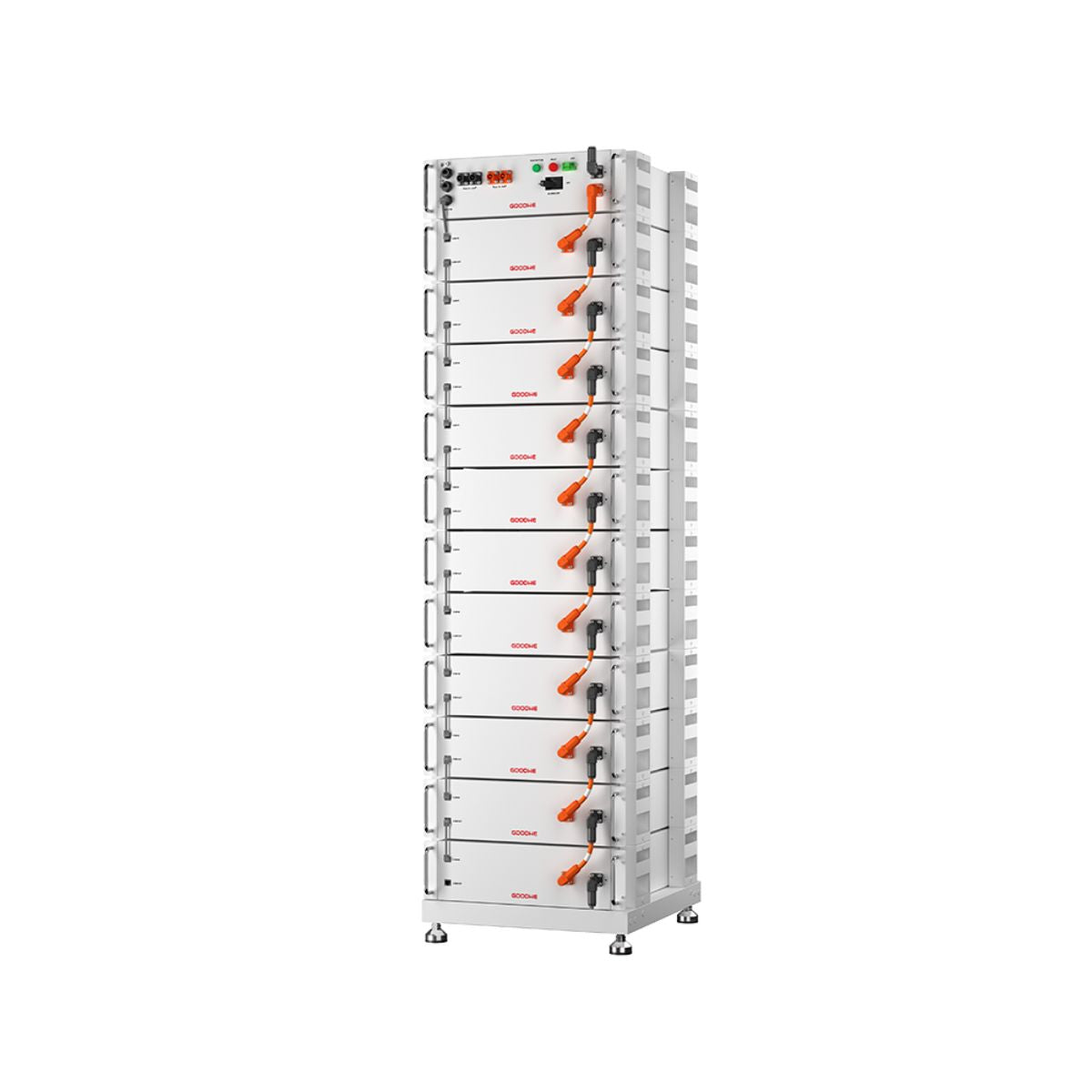

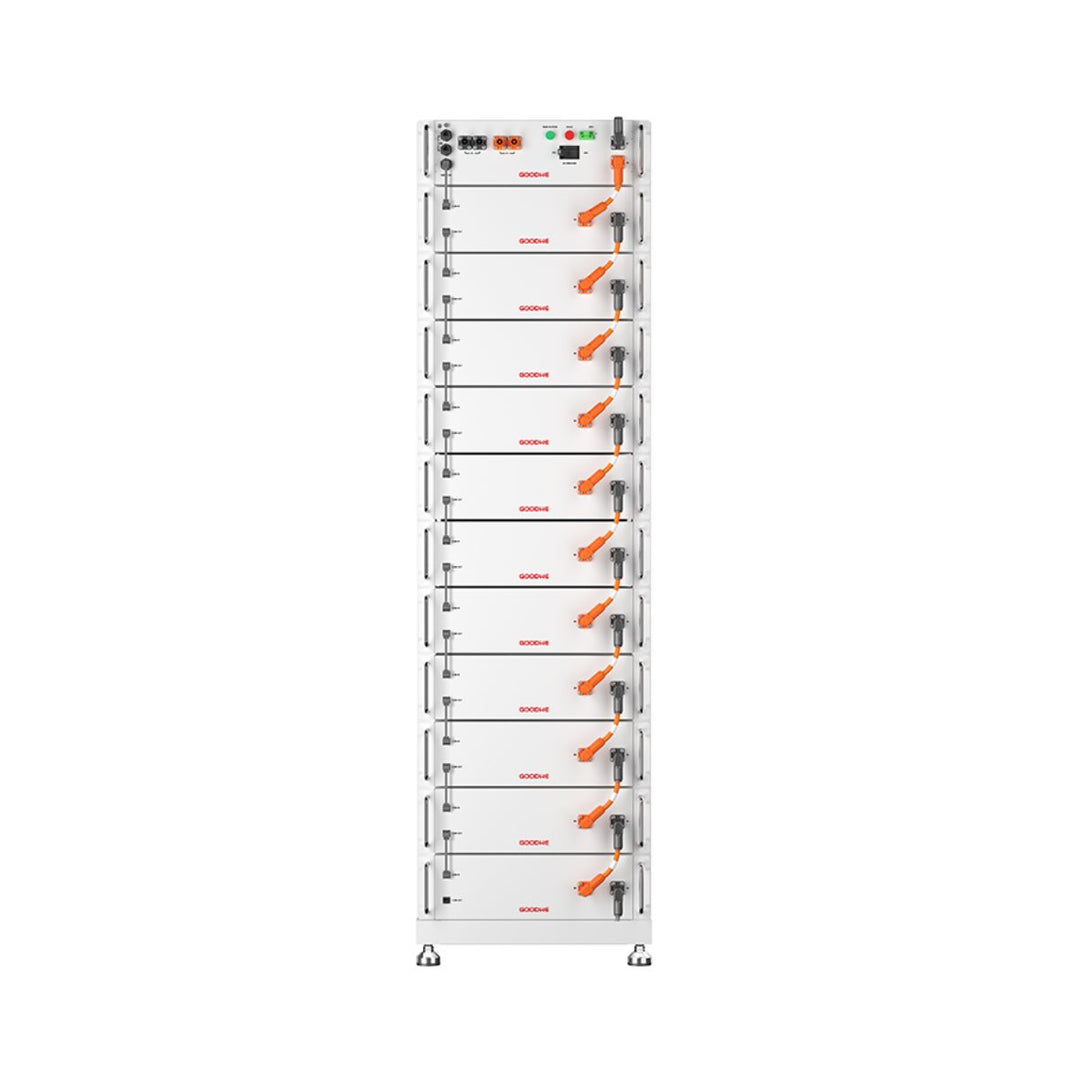

The GoodWe GW56.3-BA is a 56.3kWh high-voltage LFP battery in the BAT-S Series, designed for small commercial and industrial energy storage applications. Its modular pack-based design supports larger storage capacity in a single system and is suited to sites that need dependable peak shaving, backup support or broader energy management flexibility.
Key Features
- 56.3kWh nominal battery energy with 55.0kWh usable energy for higher-capacity storage applications.
- High-voltage LFP (LiFePO4) battery system designed for small commercial and industrial use.
- 11-pack configuration supports modular capacity scaling within the BAT-S platform.
- Supports up to 6 battery racks in parallel for larger systems up to 337.8kWh.
- Reliable LFP technology with long cycle life of 6000 cycles under stated test conditions.
- CAN communication with optional RS485 support for compatible system integration.
Applications
- Small commercial and industrial energy storage systems.
- Peak shaving and energy management applications.
- Sites needing larger high-voltage battery capacity in a modular format.
- Installations using compatible GoodWe high-voltage storage inverters.
Why Choose This Product?
This battery is a practical option for projects that need more storage capacity than a residential-scale battery can provide, while still keeping the installation modular and scalable. Its high-voltage architecture, pack-based expansion and parallel support make it well suited to growing commercial storage requirements.
Important Notes
- Designed for small commercial and industrial applications rather than standard residential battery use.
- Installation should be completed by a qualified installer using the latest GoodWe documentation.
- Aerosol fire safety equipment is listed as optional at pack level.
- Actual charge and discharge current or power derating can vary with cell temperature and state of charge.
Technical Specifications
| Specification |
Detail |
| Brand |
GoodWe |
| Model |
GW56.3-BA |
| Product Type |
High-voltage battery system |
| Series |
BAT-S Series |
| Nominal Battery Energy |
56.3kWh |
| Usable Energy |
55.0kWh |
| Cell Type |
LFP (LiFePO4) |
| Capacity |
100Ah |
| Pack Type / Model |
GW5.1-PACK-I-G10 |
| Pack Nominal Energy |
5.12kWh |
| Number of Packs |
11 |
| Nominal Voltage |
563.2V |
| Operating Voltage Range |
505.12 - 635.36V |
| Max. Charge / Discharge Current |
100 / 110A |
| Max. Charge / Discharge Rate |
1C / 1.1C |
| Max. Charge / Discharge Power |
56.3 / 61.9kW |
| Cycle Life |
6000 cycles |
| Depth of Discharge |
100% |
| Round-trip Efficiency |
96% |
| Communication |
CAN (RS485 optional) |
| Cooling Method |
Natural cooling |
| User Interface |
LED |
| Ingress Protection Rating |
IP20 |
| Fire Safety Equipment |
Aerosol optional, pack level |
| Dimensions |
481 × 1753 × 552mm |
| Weight |
517kg |
| Max. Operating Altitude |
3000m |
