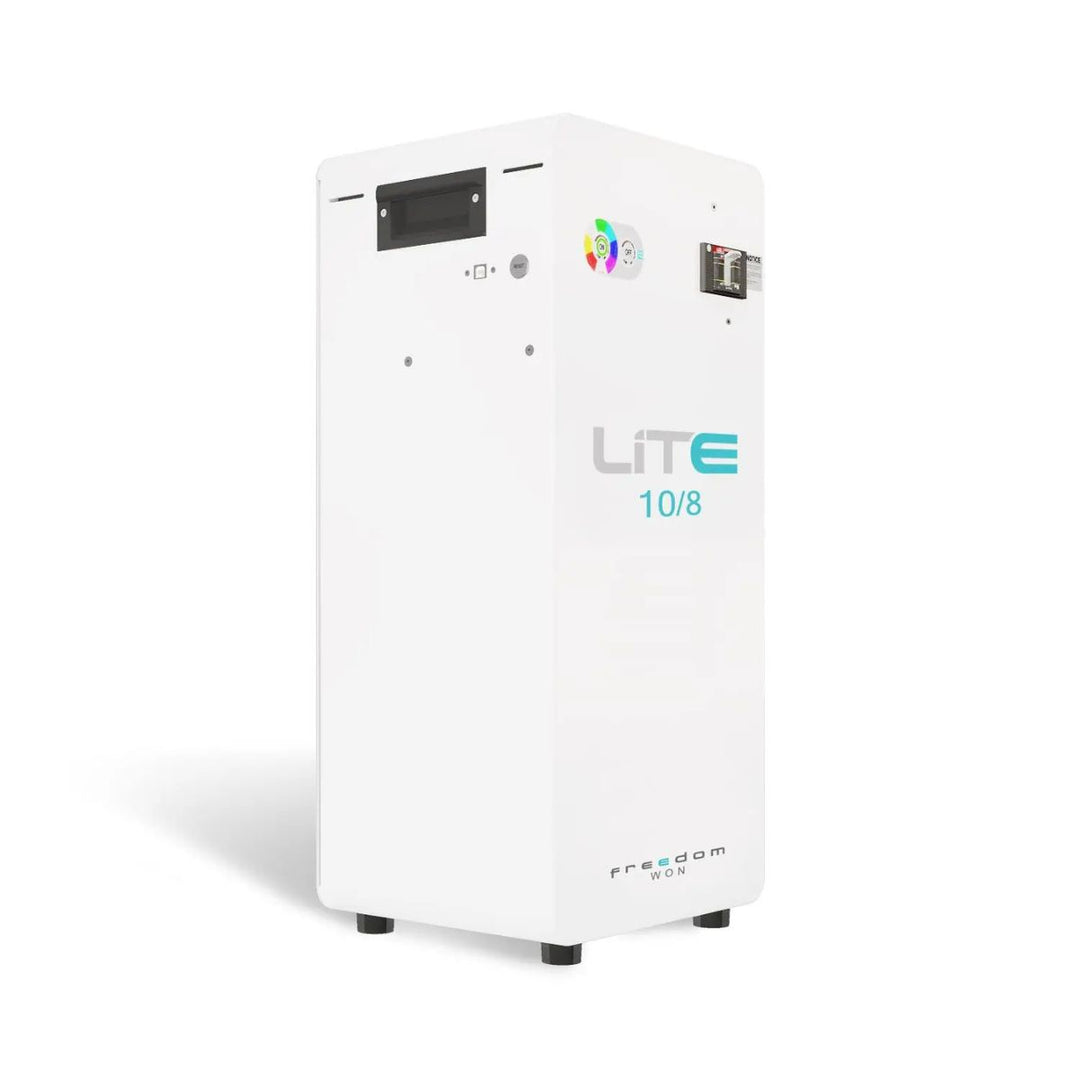

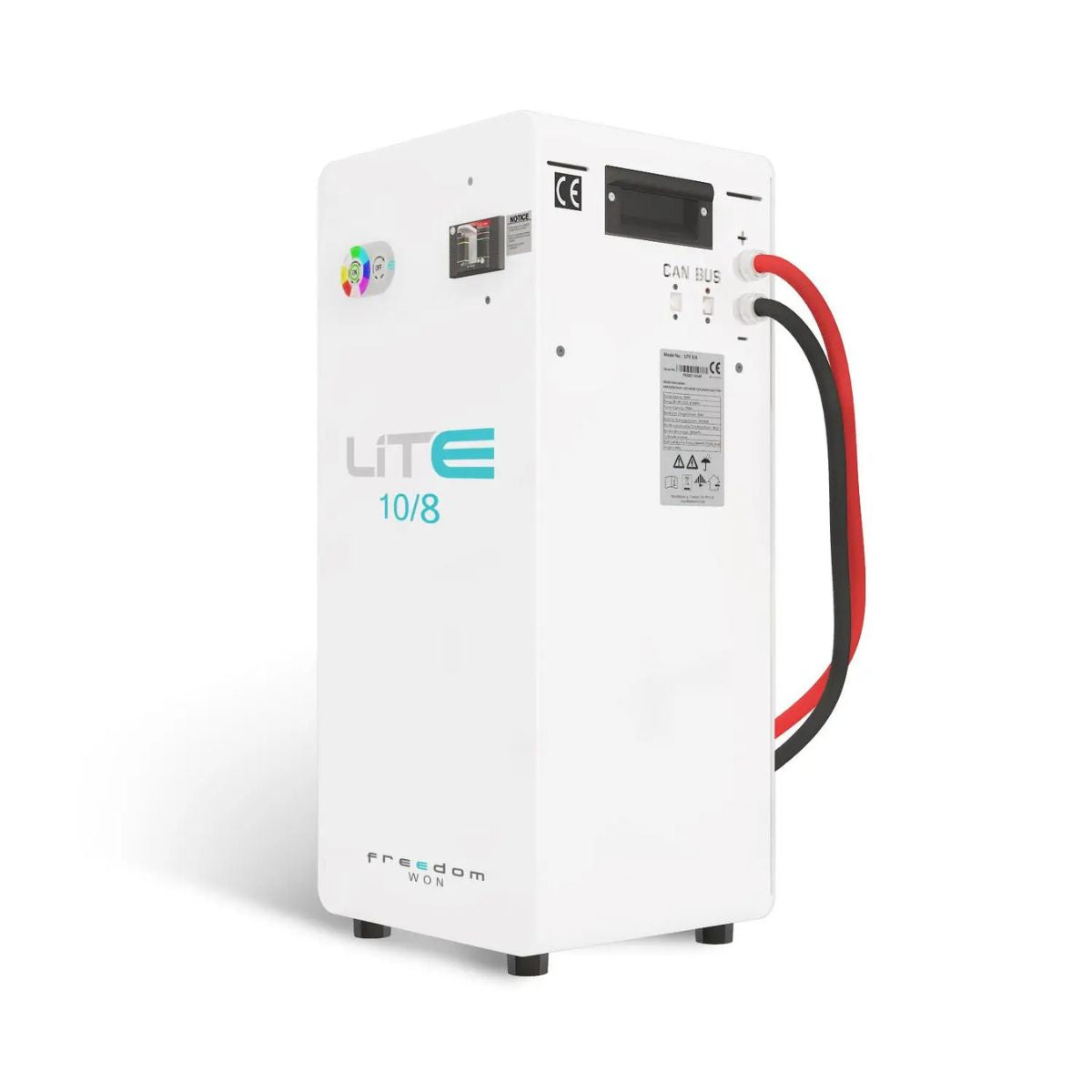

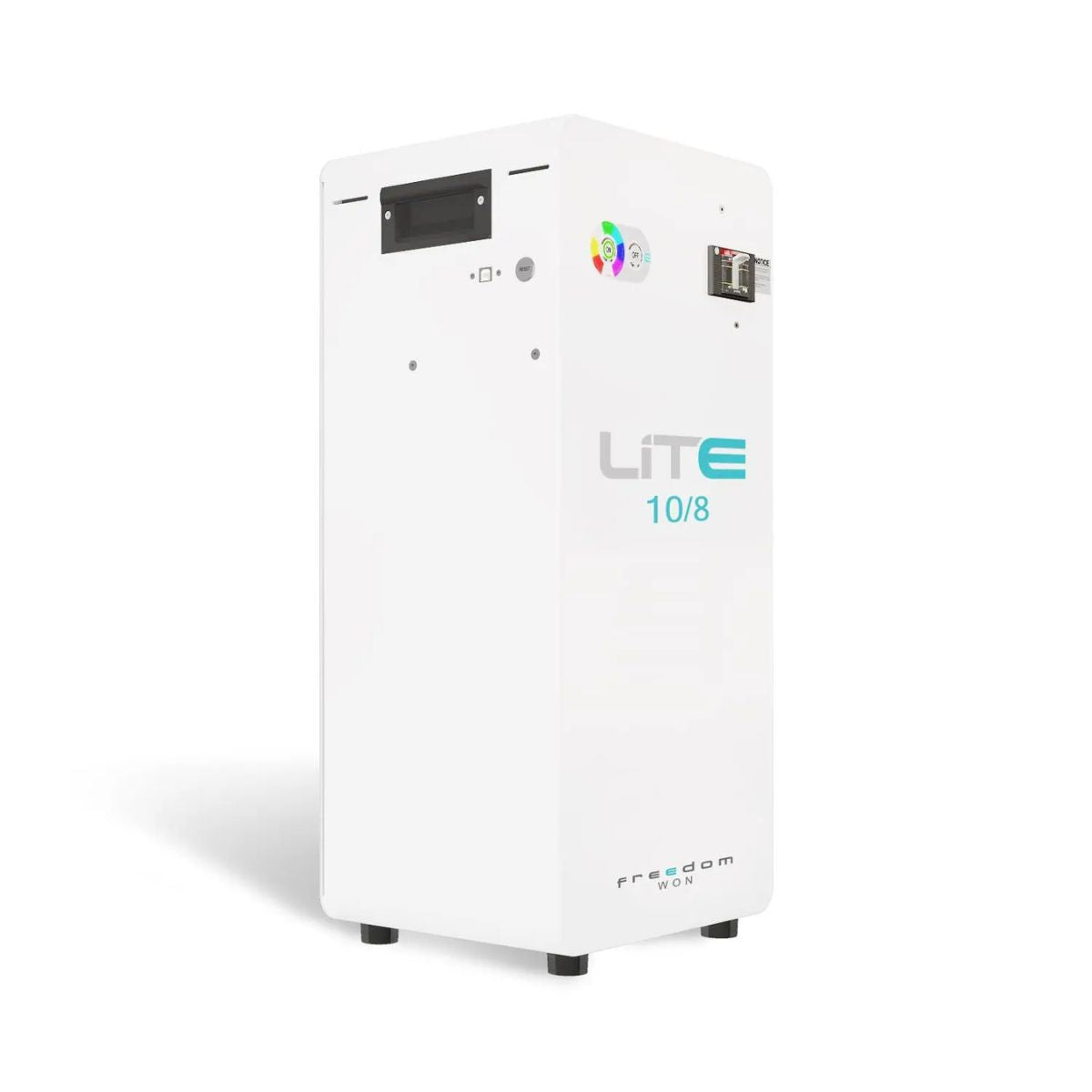

The Freedom Won LiTE 2 Home 10/8 (52V) battery is a high-performance Lithium Iron Phosphate (LiFePO₄) energy storage solution designed for residential and light commercial applications. Engineered for reliability, safety, and long service life, this battery integrates seamlessly with 48V inverter systems to deliver dependable power for backup, solar storage, and daily energy usage.
Equipped with an advanced Battery Management System (BMS), the unit ensures optimal performance through intelligent monitoring, protection features, and remote access capabilities. Its durable aluminium enclosure and modern design make it a reliable solution for efficient and sustainable energy storage.
Key Features
- High-capacity 10kWh lithium battery for residential energy storage
- Compatible with 48V inverter systems (nominal 51.2V)
- Long lifespan exceeding 16 years or 6000+ cycles
- Advanced Battery Management System (BMS) for enhanced safety
- Real-time monitoring via WiFi and Ethernet connectivity
- Integrated State of Charge (SoC) display and diagnostics
- High charge and discharge performance for demanding applications
- Robust aluminium enclosure for indoor or protected installations (IP20)
- Comprehensive protection: overcurrent, voltage, temperature, and cell monitoring
- Flexible communication via CAN bus and Ethernet interfaces
Technical Specifications
| Specification |
Value |
| Total Energy Capacity |
10 kWh |
| Usable Energy (80% DoD) |
8 kWh |
| Usable Energy (90% DoD) |
9 kWh |
| Nominal Voltage |
51.2V (min 47V, max 56V) |
| Current Capacity |
200 Ah |
| Max/Continuous Charge Current |
200 A |
| Max/Continuous Charge Power |
10 kW |
| Max Discharge Current |
240 A |
| Continuous Discharge Current |
200 A |
| Max Discharge Power |
12 kW |
| Continuous Discharge Power |
10 kW |
| Max Recommended Inverter Size |
10 kVA |
| Short Circuit Current |
8 kA |
| Dimensions (H x W x D) |
733 x 367 x 311 mm |
| Weight |
92 kg |
| Enclosure |
Aluminium, IP20 (indoor use) |
| Communication Interfaces |
RJ45 Ethernet, RJ45 CAN |
| Monitoring |
WiFi & Ethernet (remote monitoring) |
| Protection |
Overcurrent, over/under voltage, temperature, weak cell detection |
| Display & Interface |
SoC display, error light, reset button |
| Operating Temperature Range |
Optimised for 10°C to 25°C |
| Battery Chemistry |
Lithium Iron Phosphate (LiFePO₄) |
| Compliance Standards |
IEC62619, IEC62040, IEC61000, UN38.3 |
| Warranty |
10 years or 6000 cycles |
| Expected Service Life |
>16 years (at 80% DoD) |
