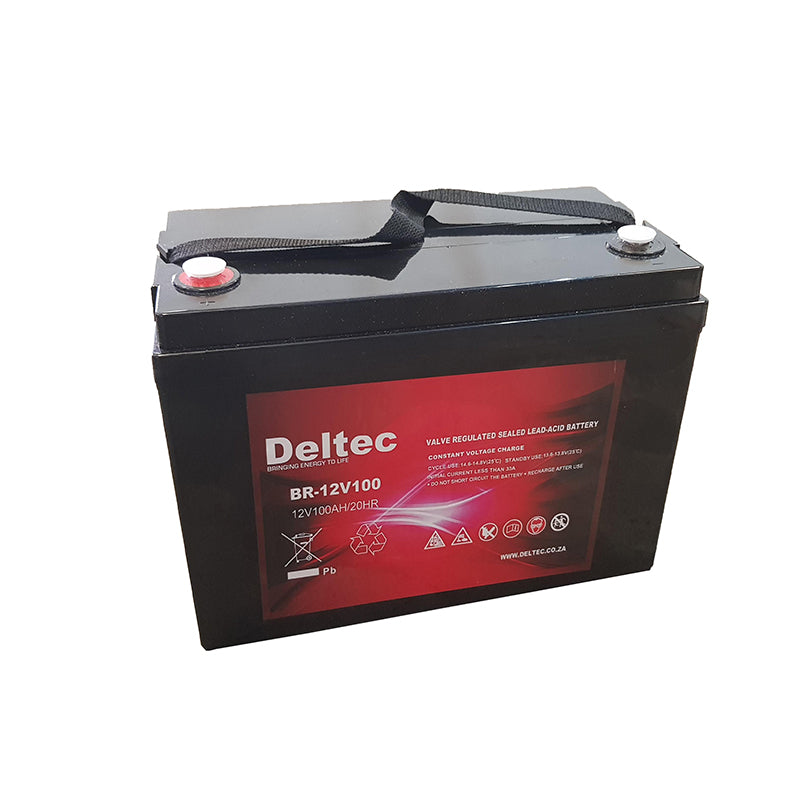

Deltec BR-12V100 100Ah 12V AGM Battery
Technical Specifications
- Cells Per Unit: 6.
- Voltage Per Unit: 12.
- Nominal Capacity: 100Ah @ 20hour-rate to 1.75V per cell @ 25°C.
- Weight: 30 Kg.
- Max. Discharge Current: 1000A (5 sec).
- Internal Resistance: 5 mΩ.
- Terminal: F12/F5.
- Maximum Charging Current: 30A.
- Design Life: up to 12 years (Float charging).
- Self-Discharge: Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25°C and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25°C.Please charge batteries before using.
- Normal Operating Temperature Range: 25C±5°C.
- Dimensions: (LxWxH): 328mm x 172mm x 215(220)mm.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
