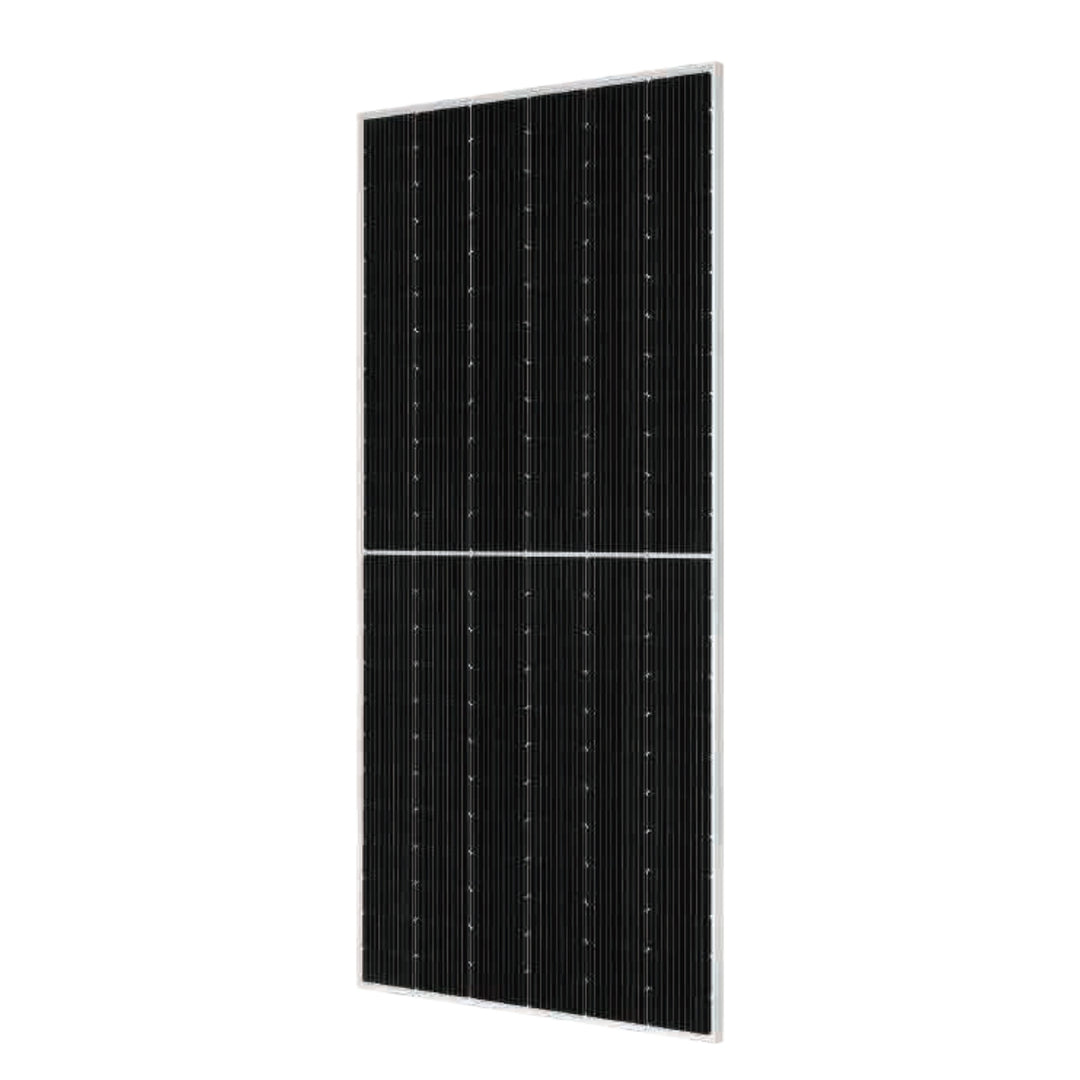

Assembled with 11BB PERC cells and gapless ribbon technology, the modules can offer higher output power with improved module efficiency, the reduction of cells gaps bring outstanding module appearance. The half-cell configuration makes less shading effect, lower risk of hot spot, as well as more reliable and stable power generation.

More benefits of this module range

• Higher power output.
• Less shading and lower resistive loss.
• Lower LCOE
• Better mechanical loading tolerance.
• 12 Year Product Warranty and 25 Year Linear Output Warranty.

Technical Specifications

• Cell: Mono.
• Weight: 27.3kg
• Dimensions: 2278×1134×30mm.
• Cable Cross Section Size: 4mm² (IEC, 12AWG (UL).
• No. of Cells: 144 (6×24).
• Junction Box: IP68, 3 diodes.
• Connector: QC4.10-351/MC4-EVO2A
• Cable Length: Portrait 200mm + 300mm, Landsacpe: 1300mm (+) 1300mm(-)

Electrical Parameters at STC

• Rated Maximum Power (Pmax) [W]: 550
• Open Circuit Voltage (Voc) [V]: 49.90
• Maximum Power Voltage (Vmp) [V]: 41.96
• Short Circuit Current (Isc) [A]: 14.00
• Maximum Power Current (Imp) [A]: 13.11
• Module Efficiency [%]: 21.3
• Power Tolerance: -0~+5W
• Temperature Coefficient of ISCA: -0.045%
• Temperature Coefficient of VC:-0.275%
• Temperature of coefficient of Pmax: -0.350%
• STC Irradiance 1000 W/m2, cell temperature 25C, AM 1.5G

Electrical Parameters at NOCT

• Rated Max Power (Pmax): 416
• Open Circuit Voltage (Voc): 46.68
• Maximum Power Voltage: (Vmp): 39.43
• Short Circuit Current (Isc): 11.17
• Maximum Power Current: 10.55

Operating Conditions

• Maximum System Voltage: 1000V/1500V DC
• Operating Temperature: -40C-+85C
• Maximum Series Fuse: 25A
• Maximum Static Load, Front: 5400Pa
• Maximum Static Load Back 2400Pa
• NOCT: 45±2C
• Safety Class: Class II
• Fire Performance UL Type 1
