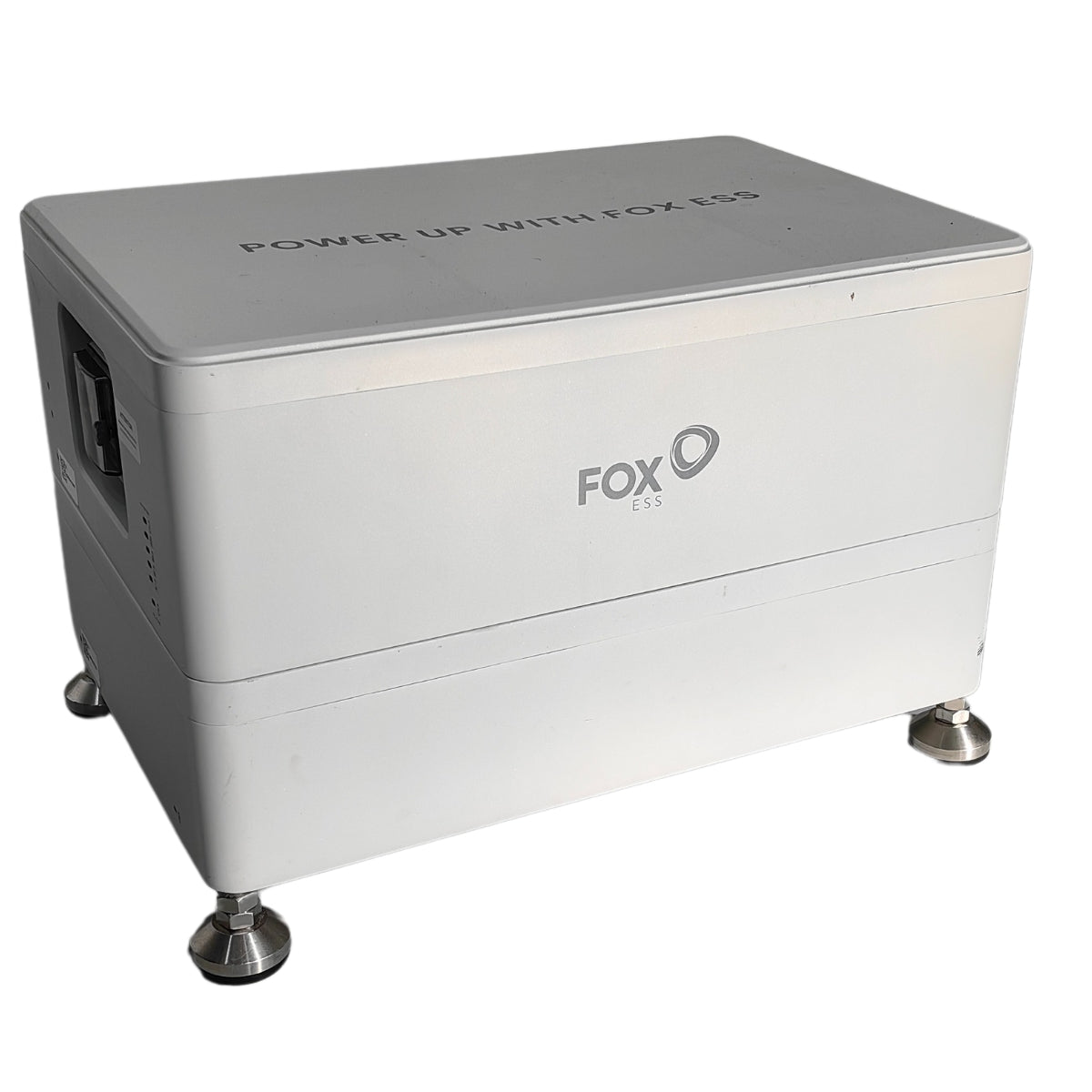

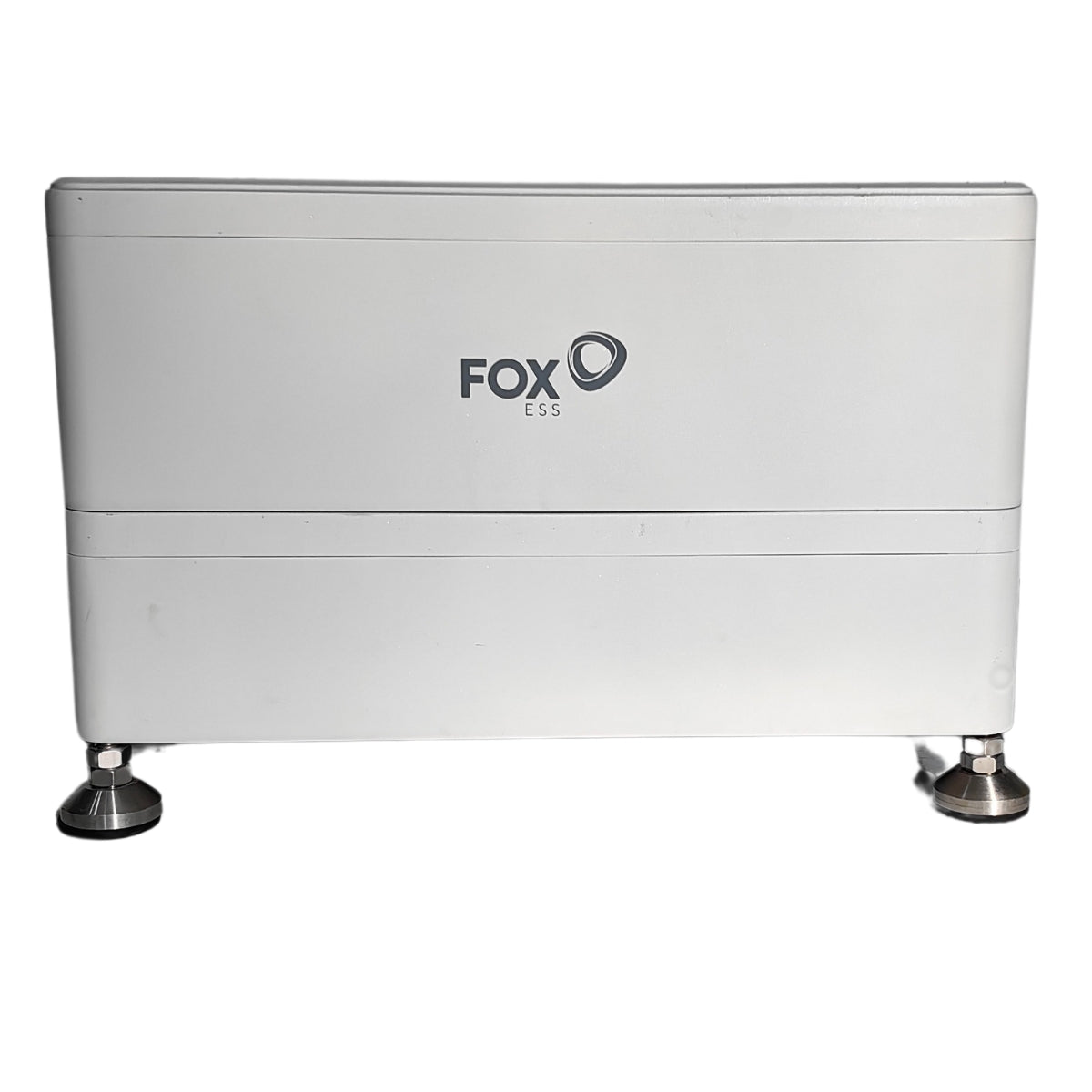

Fox ESS Energy Cube 2800 HV Lithium Ion Battery
Fox ESS Energy Cube 2800 HV Lithium Ion Battery

Fox ESS Energy Cube 2800 HV Lithium Ion Battery

Fox ESS Energy Cube 2800 HV Lithium Ion Battery

Regular price R 40,331.00 incl. VAT Sale price R 29,874.99 incl. VATSave R 10,456.01
R 25,97825 excl. VAT
incl. VAT/
Size


Tax included. Shipping calculated at checkout.
  • Secure online payments

The ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 19.35 kWh. Installation is easy, with a plug and play
solution that can save valuable time for installers

  • 2.76kWh capacity
  • Scalable to 19.35 kWh
  • 90% Depth of Discharge
  • Large temperature tolerance
  • Easy installation
  • CAN/RS485 communication
  • High voltage

ECS2800 Series Technical Specifications

Specification ECS2800-H2 ECS2800-H3 ECS2800-H4 ECS2800-H5 ECS2800-H6 ECS2800-H7
Battery Type LiFePO4 Prismatic Cell
Battery Module 1*CM2800 2*CM2800 3*CS2800 4*CS2800 5*CS2800 6*CS2800
Nominal Capacity [Wh] 5530 8290 11060 13830 16590 19350
Nominal Voltage [V] 115.2 172.8 230.4 288 345.6 403.2
Operating Voltage [V] 104.4 - 132.4 156.6 - 198.7 208.8 - 264.9 261.0 - 331.2 313.2 - 397.4 365.4 - 463.6
Recommend Discharge Current [A] 24
Max. Charge/Discharge Current [A] 48
Peak Discharge Current [A] 65 @60sec
Battery Pack Round-Trip Efficiency [%] >95
Depth of Discharge [%] 90
Cycle Life ≥6000
Communication CAN
Display CS: LED*1, CM: LED*6
Scalability Max. 7 Modules in Series
Operating Conditions
Installation Location Outdoor/Indoor (Stand)
Operating Temperature [°C] Charge: 0 - 55, Discharge: -10 - 55
Storage Temperature [°C] -20 - 55
Cooling Method Natural Convection
Humidity [%] 5 - 95 (No Condensing)
Altitude [m] Max. 2,000
Mechanical Characteristics
Dimensions (W*H*D) [mm] 570*350*380 570*470*380 570*590*380 570*710*380 570*830*380 570*950*380
Weight [kg] 65±1 95.5±15 126±2 157±2.5 187±3 217±3.5
Certificates
Safety IEC 62619
EMC IEC 61000-6-1/2/3/4
Transportation UN38.3
Ingress Protection IP65

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
